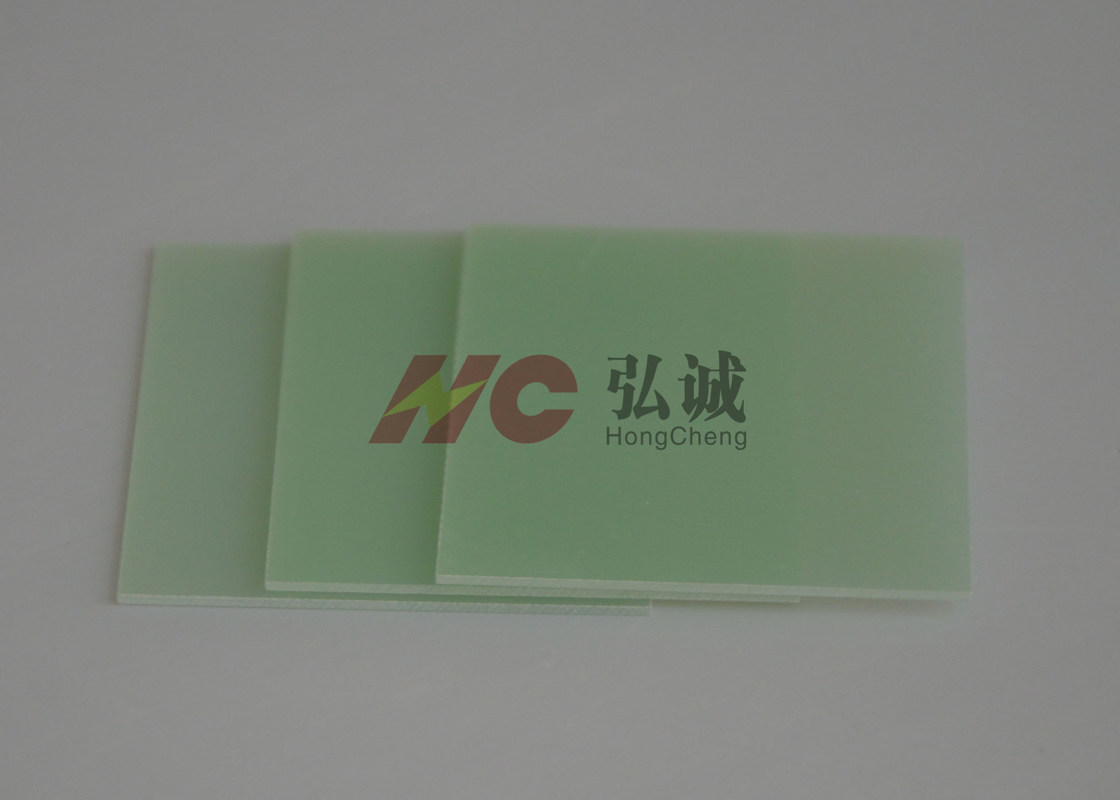

Light Green G10 Laminate Sheet / Fiberglass Resin Sheets Excellent Voltage Resistance

    • Light Green G10 Laminate Sheet / Fiberglass Resin Sheets Excellent Voltage Resistance
    • Light Green G10 Laminate Sheet / Fiberglass Resin Sheets Excellent Voltage Resistance
    • Light Green G10 Laminate Sheet / Fiberglass Resin Sheets Excellent Voltage Resistance
    • Light Green G10 Laminate Sheet / Fiberglass Resin Sheets Excellent Voltage Resistance
  • Light Green G10 Laminate Sheet / Fiberglass Resin Sheets Excellent Voltage Resistance

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: Rohs/Reach /SGS/UL
    Model Number: G10 / EPGC201/ HGW2372/F880

    Payment & Shipping Terms:

    Packaging Details: crate packing/ carton/pallet
    Delivery Time: 5-8work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: G10 VerticalElectric Strength: ≥ 14KV/mm
    Breakdown Voltage: ≥ 60KV Flexural Strength: ≥ 340Mpa

    Light green G10 epoxy sheet with halogen free / Low smoke Light green EPGC201


    Product Introduction:

    Light green G10 epoxy sheet with halogen free is made of composed imported alkali-free glass fiber cloth ,impregnated with imported unmixed epoxy resin ,added the imported fire retardant and cementing compound,it is a rigid plate-like insulating material under high temperature and high pressure..



    Light green G10 epoxy sheet with halogen free are widely used in low & middle voltage electric euipment as insulating structures,such as circuit breakers,switchgear,transformer,DC motor,AC contactor,converter,inverter & explosion-proof apparatus etc,Light green G10 epoxy sheet with halogen free are used much more extensively in consumer electronics ,panel display and photovoltaic in recent years.


    Product Advantage:



    1. Halogen free,low smoke&green product
    2. Excellent Voltage Resistance(electric strength ≥16KV/mm)
    3. Excellent Heat Resistance(Class F)
    4. Excellent thermal impact resistance(Temp.Index:-273℃ to +155℃)
    5. Excellent mechanical process-ability &high degree of automation processing
    6. RoHS,Reach Certified products

    Hong Cheng Grade HC-FR-4
    IEC 893/EN 60893 Grade EPGC 202
    ANSI (NEMA) Grade NEMA LI-1 FR-4
    DIN 7735 Hgw2372.1
    JIS GRADE EL-GEF

    Item Test method Unit Typical Values
    Physical Properties Color Visual inspection Light green / yellow
    Specific Gravity IEC 60893-2:2003 g/cm3 1.90 - 2.15
    Water absorption ISO 62:2008 % <0.3
    Electrical Properties Electric strength ┴ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
    Breakdown Voltage // IEC 60893-2:2003 KV ≥ 60
    Volume Resistivity IEC 60093:1980 Ω.m ≥ 1.0×1012
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0×1014
    (1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
    (1MHZ)Dissipation Factor IEC 60893-2:2003 0.04-0.05
    Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
    Insulation resistance after immersion 24Hrs in Water IEC 60893-2:2003 Ω ≥ 5×1010
    Mechanical Properties Flexural Strength ┴ IEC 60893-2:2003 MPa ≥ 340
    Charpy Impact strength // IEC 60893-2:2003 KJ/m2 ≥60
    TensileStrength IEC 60893-2:2003 MPa ≥300
    //Bond Strength // IEC 60893-3-4:2003 N ≥8000
    Compressive Strength┴ IEC 60893-2:2003 MPa ≥ 350
    Flame Resistance Properties Flame resistance IEC 60893-2:2003 V-0
    Temperature Index IEC 60085:2004 155
    Toxicant Content E662 Low
    Others Acetone Resistance boiled Min 30(OK)




    Light Green G10 Laminate Sheet / Fiberglass Resin Sheets Excellent Voltage Resistance

    Advantages: 1.Proficient in advanced programming software, such as: Mcam9.1, UG software programming , to meet the requirements of machining on complex surface;

    2.We have a senior R&D engineers team and the team have the ability in designing the fixture independently to meet production requirements of high quality , high yield and lower cost.

    3.To meet the customers’ requirements , company owned dozens of high-precision CNC equipments to short the delivery time .

    4.The company have dozens of No.850&No.650 CNC machining center (with tool storage) , these machines can be used to complete multistep processes of complex parts at one-time.

    5.The company owned several Large gantry CNC machines in 1000*1200mm , large panel parts can be completed at one-time by high-precision processing and avoid deviation from machining.

    Packing detail:plywood crate packing;plywood pallet;plastic pallet;Exports standard cartons for products
    delivery detail: 5-7 working days
