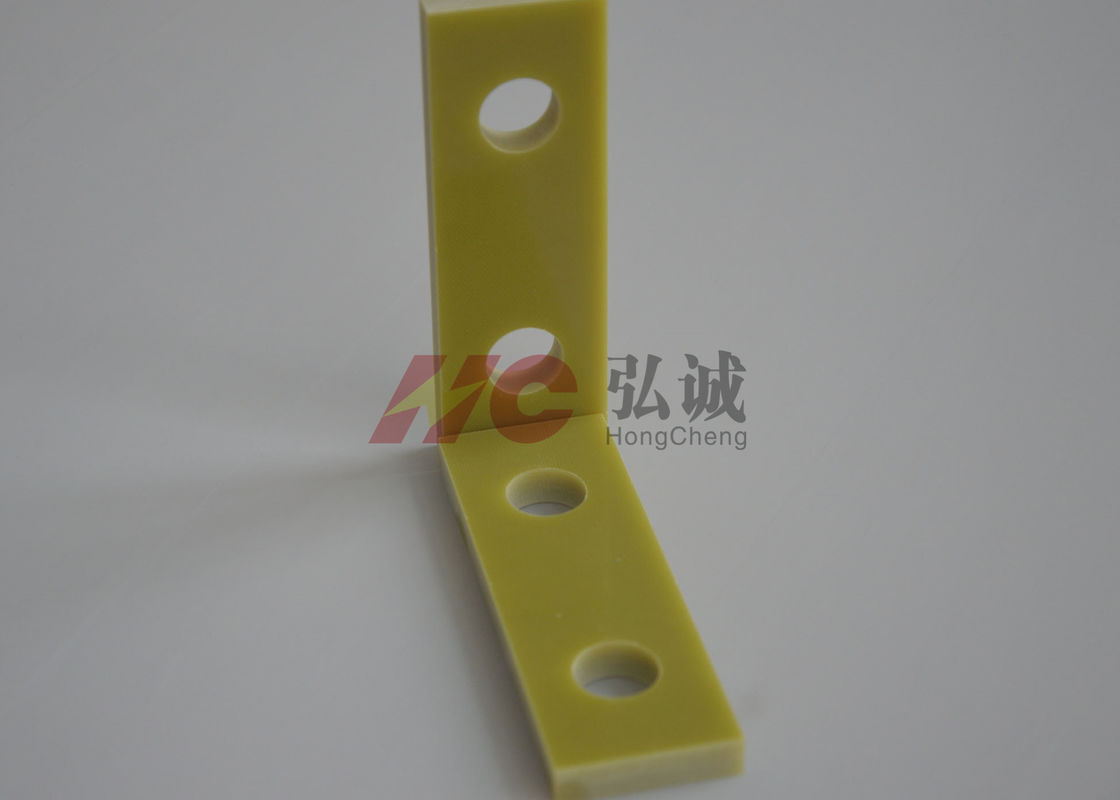

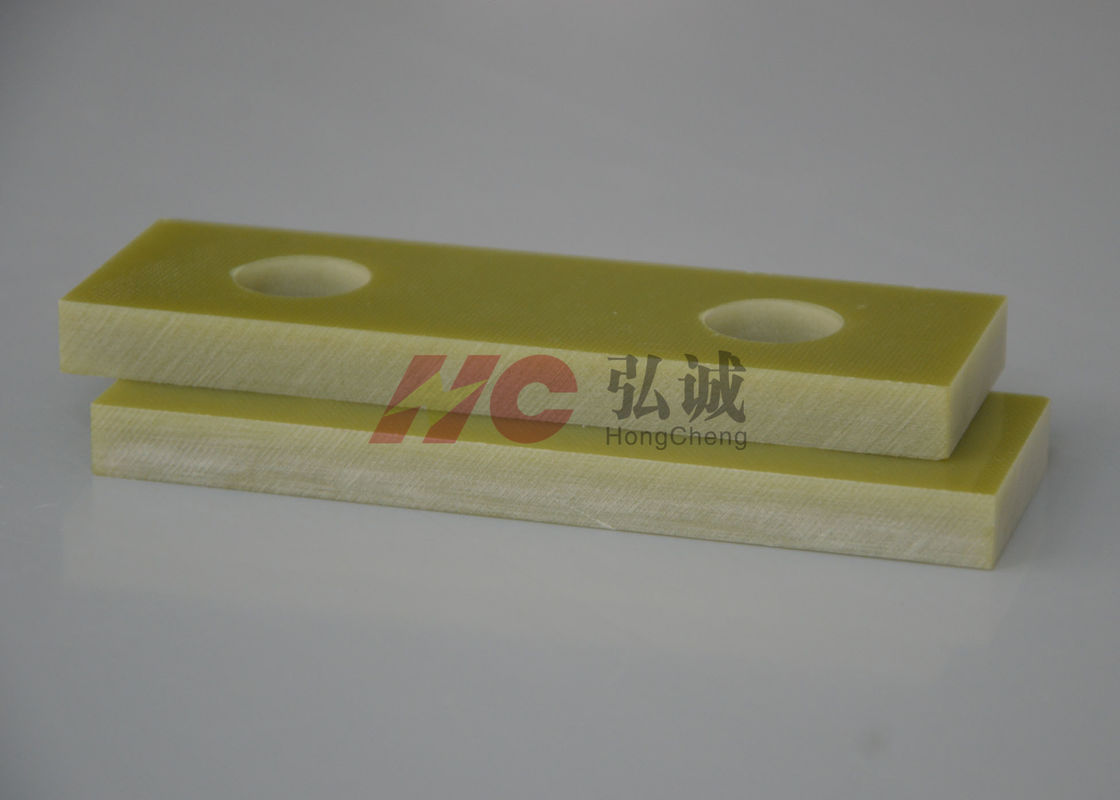

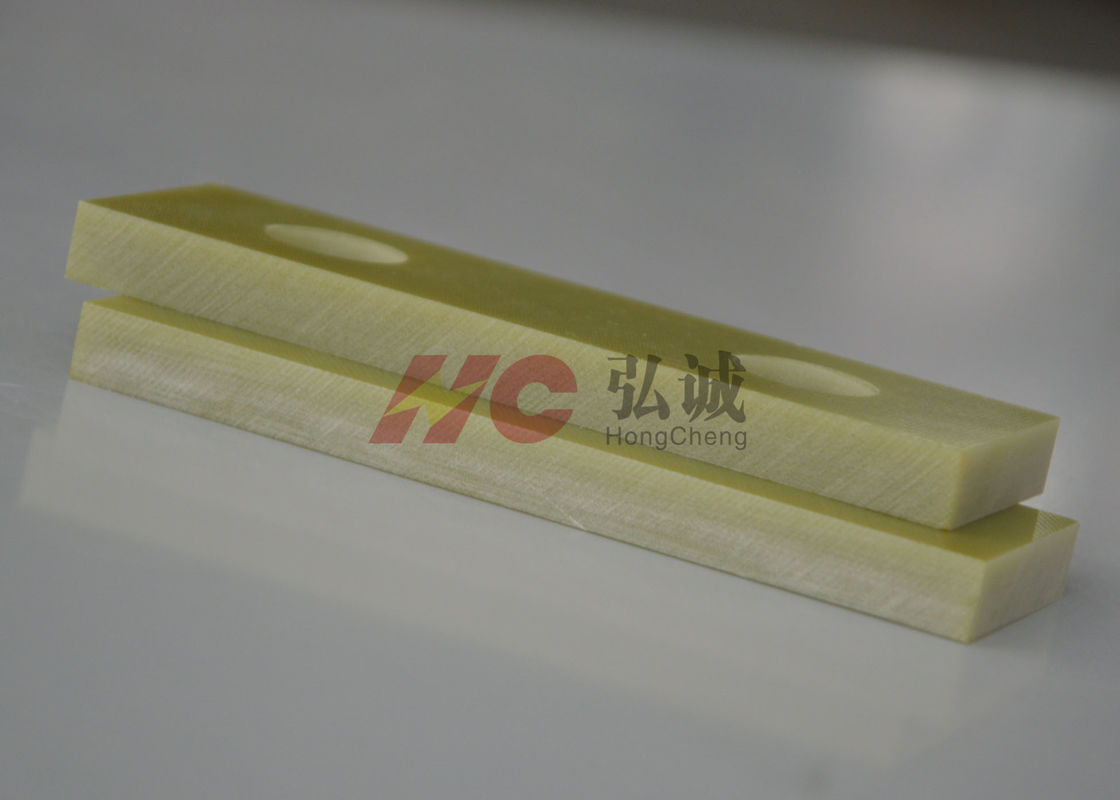

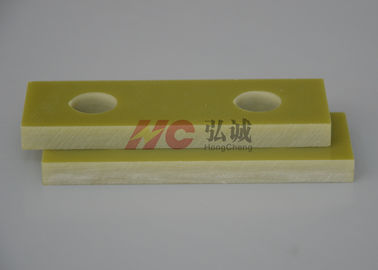

No-hologen Yellow G10 epoxy sheet / Low smoke yellow EPGC201 with high mechanical properties
Product Introduction:
No-hologen Yellow G10 epoxy sheet is made of composed imported alkali-free glass fiber cloth ,impregnated with imported unmixed epoxy resin ,added the imported fire retardant and cementing compound,it is a rigid plate-like insulating material under high temperature and high pressure..
Application:
insulating structure:circuit breakers,switchgear,transformer,DC motor,AC contactor,converter,inverter & explosion-proof apparatus etc
consumer electronics :panel display and photovoltaic
Product Advantage:
Hong Cheng Grade | HC-FR-4 | |||
IEC 893/EN 60893 Grade | EPGC 202 | |||
ANSI (NEMA) Grade NEMA LI-1 | FR-4 | |||
DIN 7735 | Hgw2372.1 | |||
JIS GRADE | EL-GEF | |||
Item | Test method | Unit | Typical Values | |
Physical Properties | Color | Visual inspection | - | Light green / yellow |
Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.90 - 2.15 | |
Water absorption | ISO 62:2008 | % | <0.3 | |
Electrical Properties | Electric strength ┴ | IEC 60893-2:2003 | KV/mm | ≥ 14(3.0mm) |
Breakdown Voltage // | IEC 60893-2:2003 | KV | ≥ 60 | |
Volume Resistivity | IEC 60093:1980 | Ω.m | ≥ 1.0×1012 | |
Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0×1014 | |
(1 MHZ) Dielectric constant | IEC 60893-2:2003 | ﹍ | 4.0-5.5 | |
(1MHZ)Dissipation Factor | IEC 60893-2:2003 | ﹍ | 0.04-0.05 | |
Proof Tracking Index PTI | IEC 60893-2:2003 | V | ≥ 200 | |
Insulation resistance after immersion 24Hrs in Water | IEC 60893-2:2003 | Ω | ≥ 5×1010 | |
Mechanical Properties | Flexural Strength ┴ | IEC 60893-2:2003 | MPa | ≥ 340 |
Charpy Impact strength // | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
TensileStrength | IEC 60893-2:2003 | MPa | ≥300 | |
//Bond Strength // | IEC 60893-3-4:2003 | N | ≥8000 | |
Compressive Strength┴ | IEC 60893-2:2003 | MPa | ≥ 350 | |
Flame Resistance Properties | Flame resistance | IEC 60893-2:2003 | ﹍ | V-0 |
Temperature Index | IEC 60085:2004 | ℃ | 155 | |
Toxicant Content | E662 | ﹍ | Low | |
Others | Acetone Resistance | boiled | Min | 30(OK) |
No-hologen Yellow G10 epoxy sheet used in FCP
Flexible Printed Circuit Board is also called FPC,is kind of printed circuit made of flexible insulating substrate. FPC meets the design requirements of smaller and higher density which helps to reduce the assembly process and increased reliability.FPC is the only way to solve the The miniaturization of electronic products,free to bend,wind,fold for million times but won't damage the conductor,it can move in three-dimensional space and scale.So as to achieve integration of the components assembly and wire connection.
Pultruded fiberglass tube has excellent Fire Retardant,excellent Voltage Resistance,excellent Heat Resistance,excellent Heat Resistance(Class F),excellent mechanical processability & high degree of automation processing,FR-4 sheet and FR-2 Bakelite plate are good materials for Rigid circuit board,FPC.
Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.
