Brown UPGM 203 Insulation Sheet With Excellent Proof Tracking Resistance
-
High Light
high pressure laminate sheet
,reinforcement sheet
-
Product Name：Red UPGM203
-
Nema StandardGPO-3
-
German StandardHM2471
-
Flame ResistanceV-0
-
Temperature Index155℃
-
Place of OriginChina
-
Brand NameHongcheng
-
CertificationUL（E344098）/RoHS 2.0 /Reach/SGS
-
Model NumberUPGM203
-
Minimum Order Quantity100 piece
-
Delivery Time1-3 WORK DAYS
-
Payment TermsT/T
Brown UPGM 203 Insulation Sheet With Excellent Proof Tracking Resistance

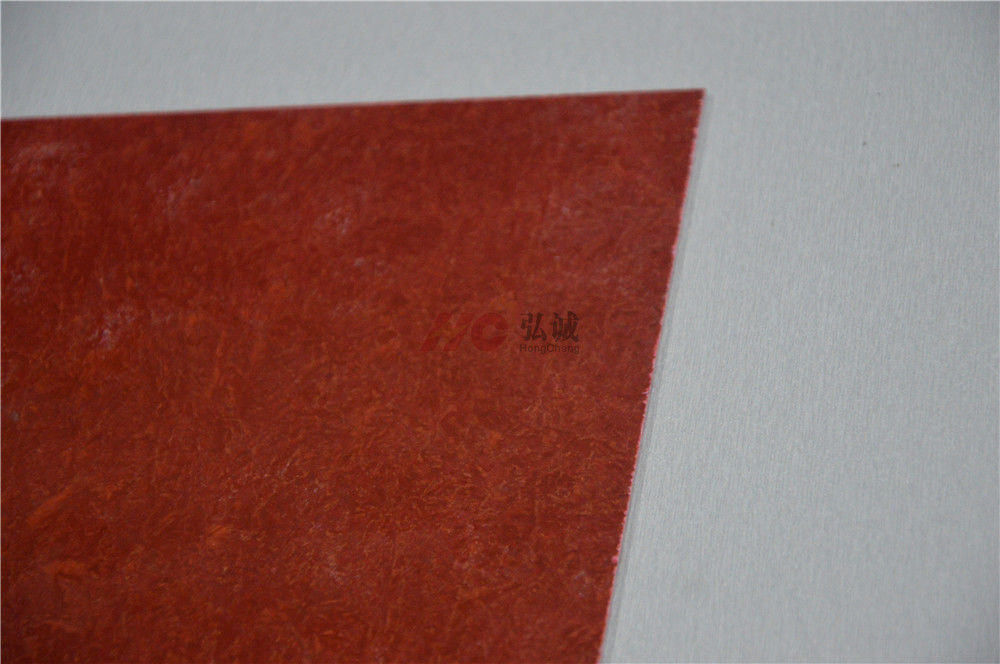

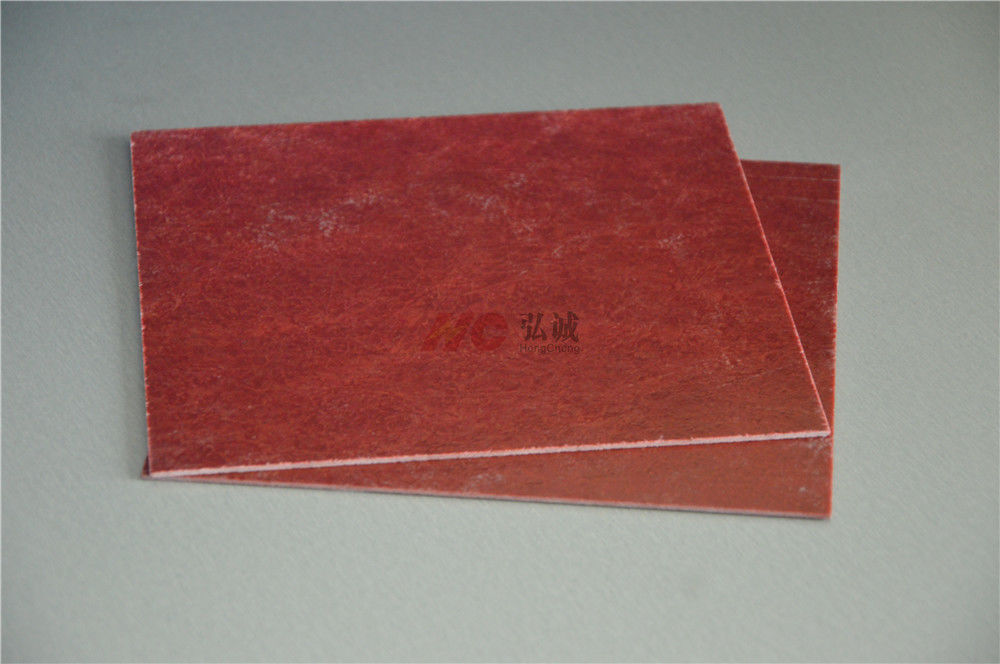

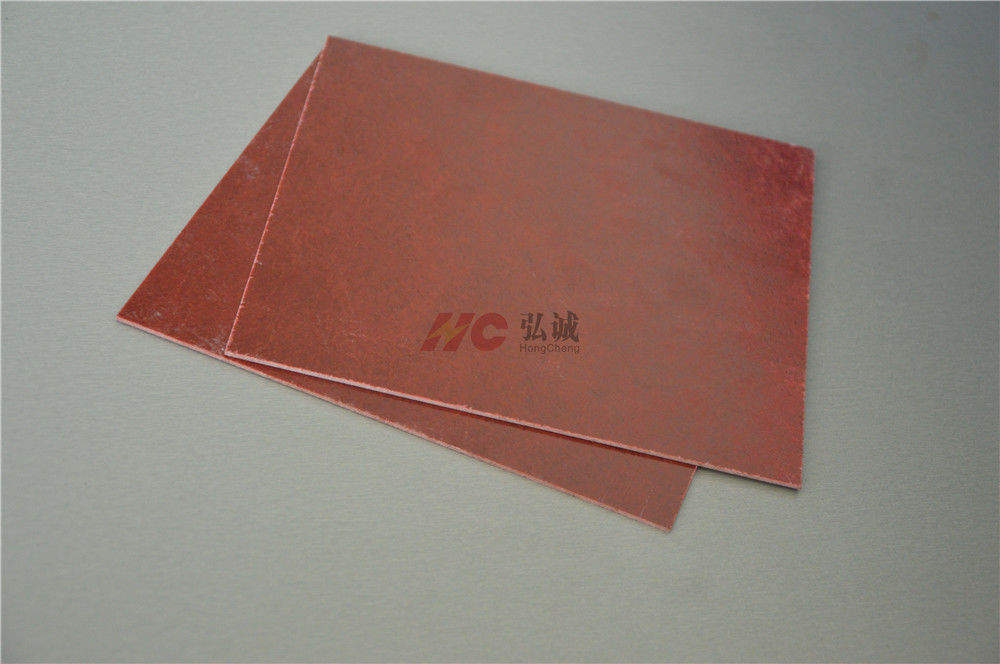

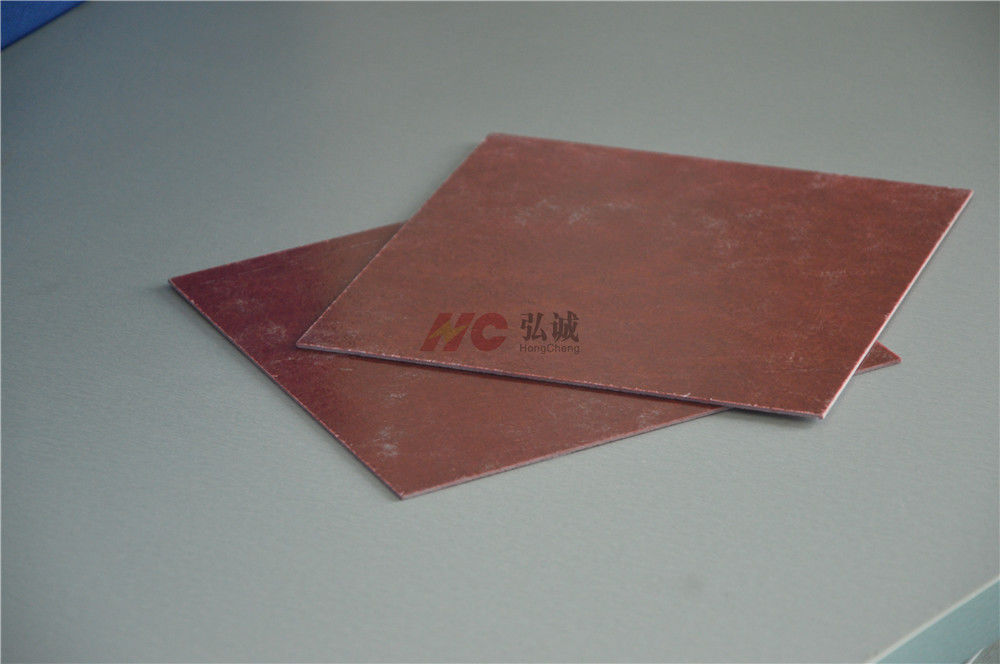

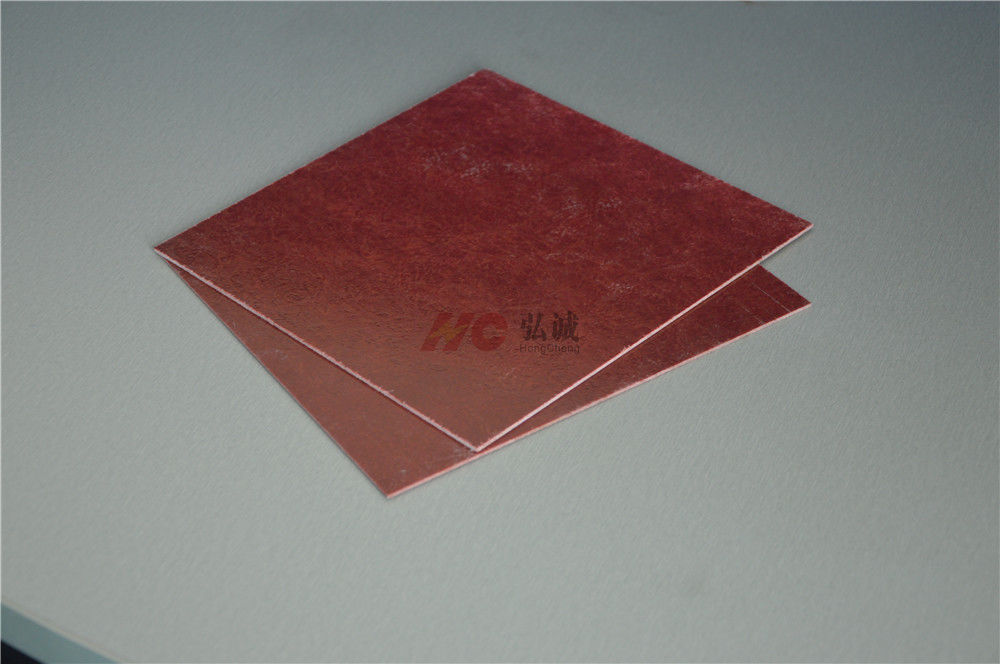

Brown laminated sheet upgm203 with high mechanical strength / Brown upgm203 fiberglass Sheet
Product Introduction:
Brown upgm203 fiberglass Sheet is or related products are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press
Feature:
Red upgm203 fiberglass Sheet has good machinability,high mechanical strength,good dielectric properties,excellent proof tracking resistance and arc resistance.
Thickness range :2mm-60mm
Sheet Size:1000mm*1200mm
| Hong Cheng Grade | HC-GPO3 | |||
| IEC 893 / EN 60893 Grade | UP GM 203 | |||
| DIN 7735 Grade | HM 2471 | |||
| ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
| Items | Test Method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
| Compressive strength | IEC 60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
| Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
| Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
| Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
| Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
| PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
| Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
| tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
| Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
| Toxicant(Emission halogen etc.) | E662 | --- | Low | |
| Other properties | The anti microbial properties of bacteria | G21-G22 | --- | good |
Brown upgm203 fiberglass Sheet is used extensilvely in rail traffic,There are many modules for the use of insulation materials in rail transit, modules of motor and traction motor, module equipment and interior decoration.On safety performance for this kind of civil transport have quite high demand, need fire report, flame retardant grade should be V0, heat resistance grade should be above F, even C grade requirement of heat resistance, besides the material itself needs certain mechanical strength and electrical strength. The commonly used materials in rail traffic are upgm203 sheet
Factory & Produce Line
Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further
| Processing methods | Machinery processing |
| Application of plate | Material thickness 0.1-40mm |
| The advantage of processing |
1.skilled at face milling, drilling speed, flexible processing; 2.Strong versatility, it can be processed into various parts； 3.The advantage of low cost, high efficiency to meet the requirements of customer delivery. |
Our services cover all industries and reach all parts of the world.
