Durable UPGM 203 Insulation Sheet / Yellow Laminate Sheet With RoHS Certified

    • Durable UPGM 203 Insulation Sheet / Yellow Laminate Sheet With RoHS Certified
    • Durable UPGM 203 Insulation Sheet / Yellow Laminate Sheet With RoHS Certified
    • Durable UPGM 203 Insulation Sheet / Yellow Laminate Sheet With RoHS Certified
    • Durable UPGM 203 Insulation Sheet / Yellow Laminate Sheet With RoHS Certified
    • Durable UPGM 203 Insulation Sheet / Yellow Laminate Sheet With RoHS Certified
  • Durable UPGM 203 Insulation Sheet / Yellow Laminate Sheet With RoHS Certified

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: UPGM203

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 piece
    Packaging Details: Crate packing,plywood pallet, cartons
    Delivery Time: 1-3 WORK DAYS
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name:: Red UPGM203 Nema Standard: GPO-3
    Proof Tracking Index PTI: ≥600 Flame Resistance: V-0
    Temperature Index: 155℃ Dielectric Constant: 4.0-5.0
    Dissipation Factor: ≤0.03

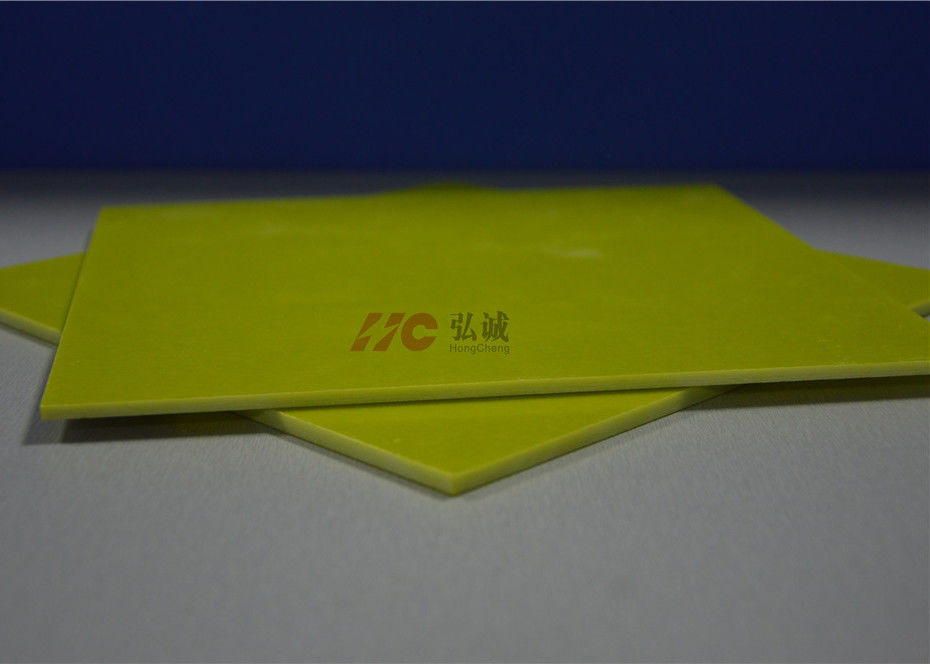

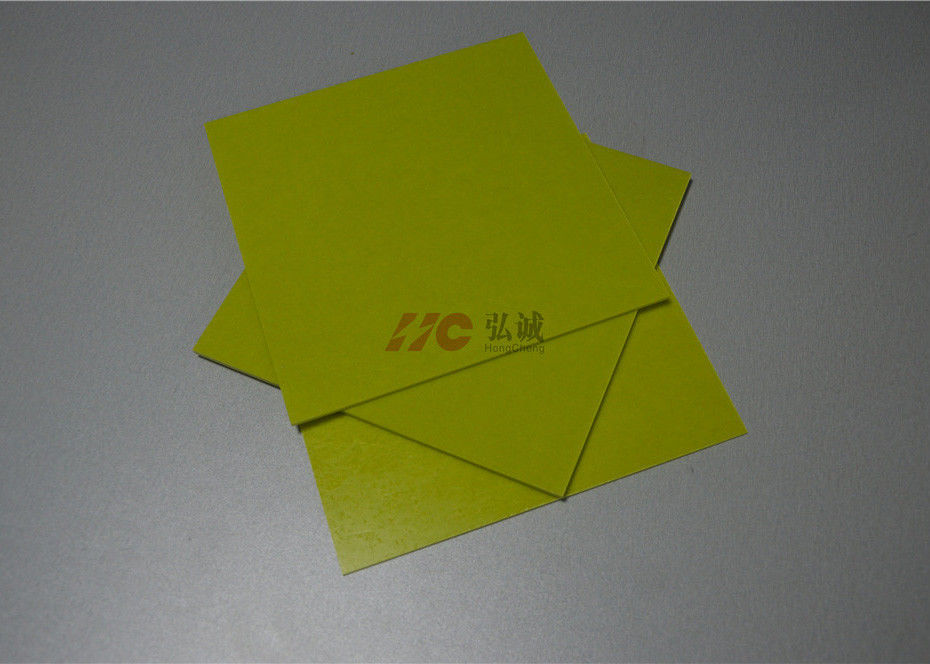

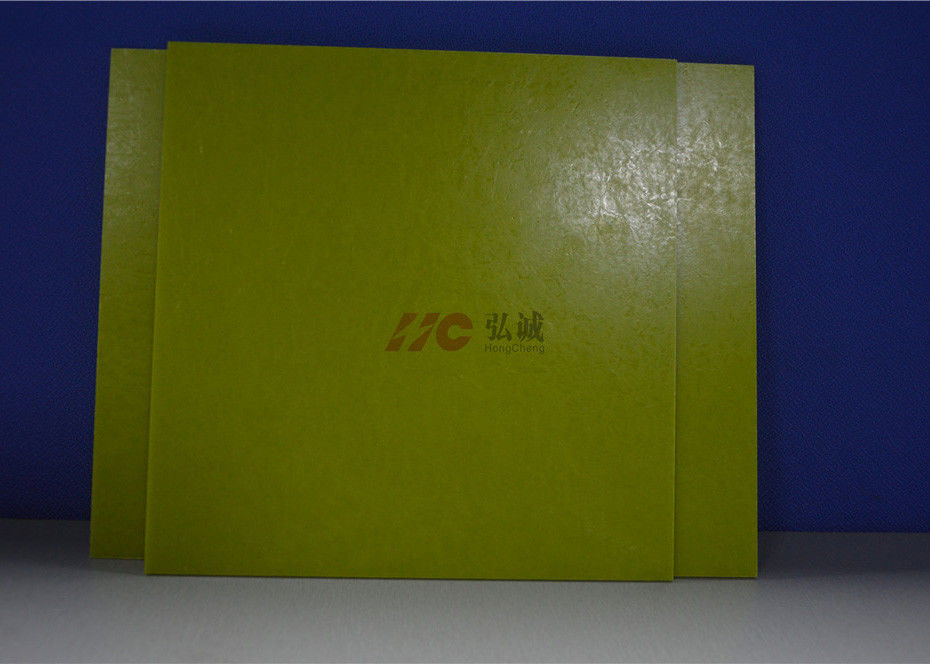

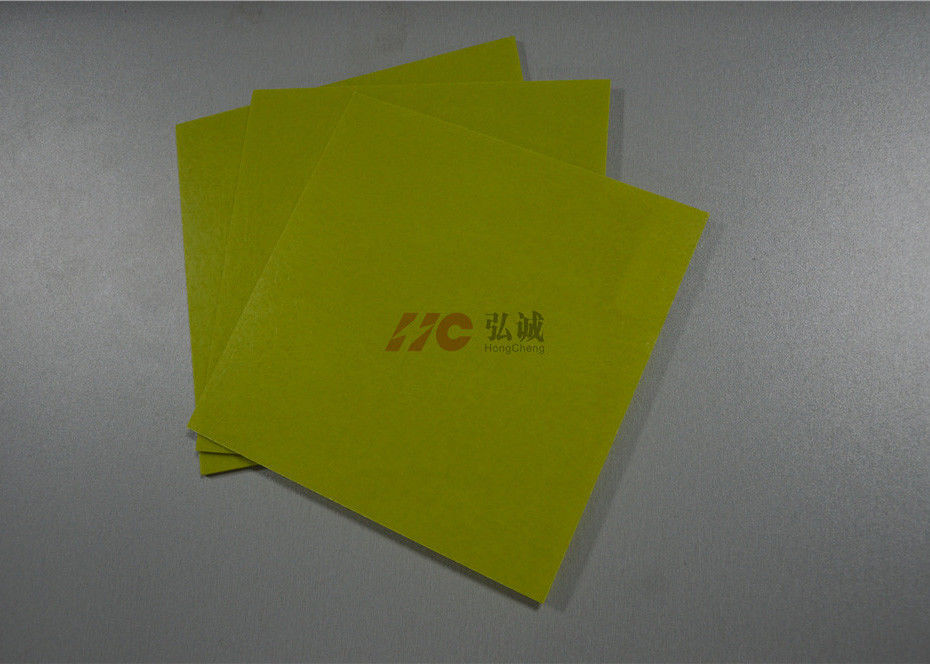

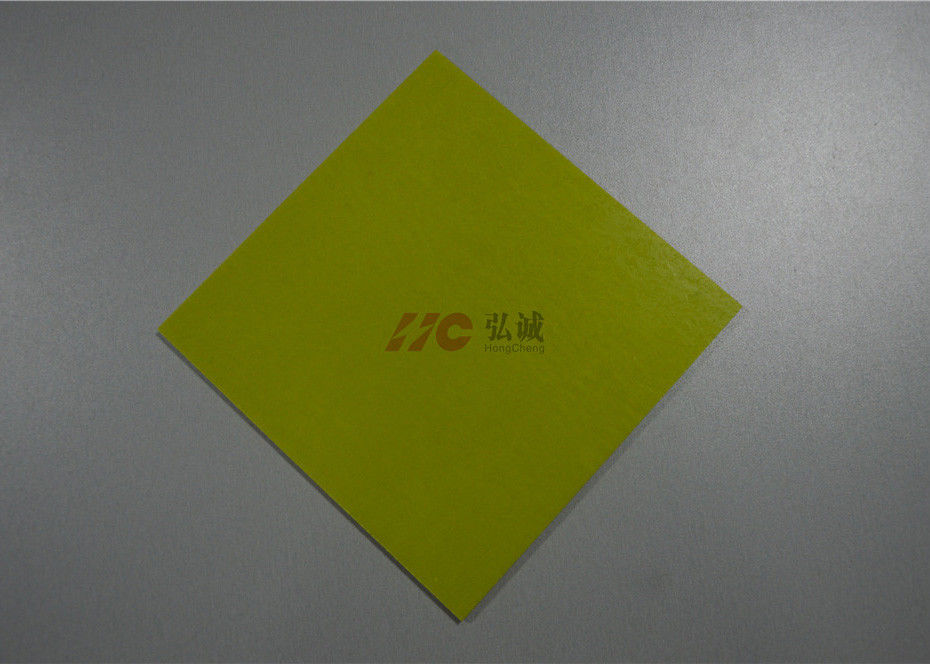

    Yellow upgm203 fiberglass Sheet / Yellow laminated sheet upgm203 with RoHS Certified


    Product Introduction:
    Yellow laminated sheet upgm203 with RoHS Certified is made of akili-free glass mat impregated with polyester resin under heat and pressure process.

    Feature:

    1. Beard to draft the country standard,have earned six patents
    2. Excellent Arc Resistance(Arc Resistance≥180 S)
    3. Excellent Track Resistance(CTI≥600V)
    4. Excellent Heat Resistance(Class F)
    5. Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
    6. Excellent Fire Retardant(UL 94 V-0 Grade)
    7. Excellent Mechanical Strength and Automatic Machining
    8. Low Smoke,Halogen Free Products(NF-F16-101/102)
    9. RoHS,Reach Certified products


    Application:

    The upgm203 laminated sheet is used extensively in busbar.The laminated busbar is also called the composite busbar,it provides a modern, easy design, quick assemble and clear structured distribution system.It has high power modularized connected structural parts with the characteristics of repeatable electrical performance, low impedance, anti-interference, good reliability, space saving , simple and quick assembly.Composite bus is widely used in electric and hybrid traction, electric traction equipments, cellular communication, base station, telephone switching system, large network equipment, large and medium-sized computers, power switch system, welding system, military equipments, power generation system,power conversion module for electrical equipment etc. The requirements for insulating materials are smooth and fine on surface, high planeness , arc resistance and high breakdown voltage etc.


    Thickness range :2mm-60mm

    Sheet Size:1000mm*1200mm;1230mm*2100mm


    Hong Cheng Grade HC-GPO3
    IEC 893 / EN 60893 Grade UP GM 203
    DIN 7735 Grade HM 2471
    ANSI (NEMA) Grade NEMA LI-1 GPO-3
    Items Test Method Unit Typical Values
    Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
    Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
    Water absorption ISO62:2008 % ≤0.5
    Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
    Compressive strength IEC 60893-2:2003 ≥300
    Flexural Strength IEC 60893-2:2003 ≥180
    Impact strength IEC 60893-2:2003 KJ/m2 ≥60
    Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
    Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
    Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
    Arc Resistance IEC 61621:1997 sec ≥180
    PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
    Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
    tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Temperature Index IEC 60085:2004 155
    Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Flame Resistance IEC 60893-2:2003 --- V-0
    Toxicant(Emission halogen etc.) E662 --- Low
    Other properties The anti microbial properties of bacteria G21-G22 --- good

     Durable UPGM 203 Insulation Sheet / Yellow Laminate Sheet With RoHS Certified

    Processing methods Precision engraving
    Application of plate machining tolerance according to the ISO 2768-M
    The advantage of processing

    1.Proficient in advanced programming software, such as: Mcam9.1, UG software programming, to meet the requirements of machining of complex surface;

    2.We have a large number of senior engineers, and do the independent development of tooling and fixture to meet the production requirements of customers with high quality, high yield and low cost;

    3.We have dozens of high precision CNC machining equipment, can satisfy the customer delivery requirements of shorter production;

    4.We have 850 sets of CNC machining center (with a knife) mufti-step processing can complete complex parts;

    5.We have many 1000*1200 large platform of Longmen CNC machining centers,can complete large panel parts with high precision production to avoid error caused by splicing processing processing.


    Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further
