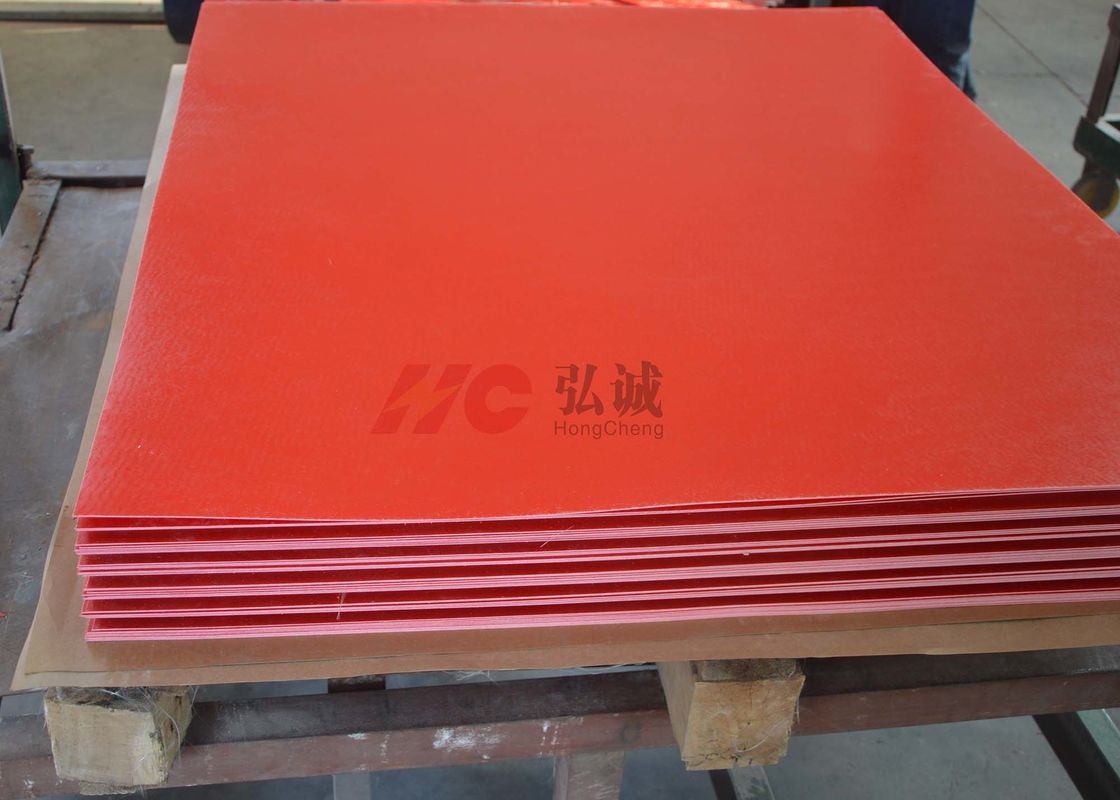

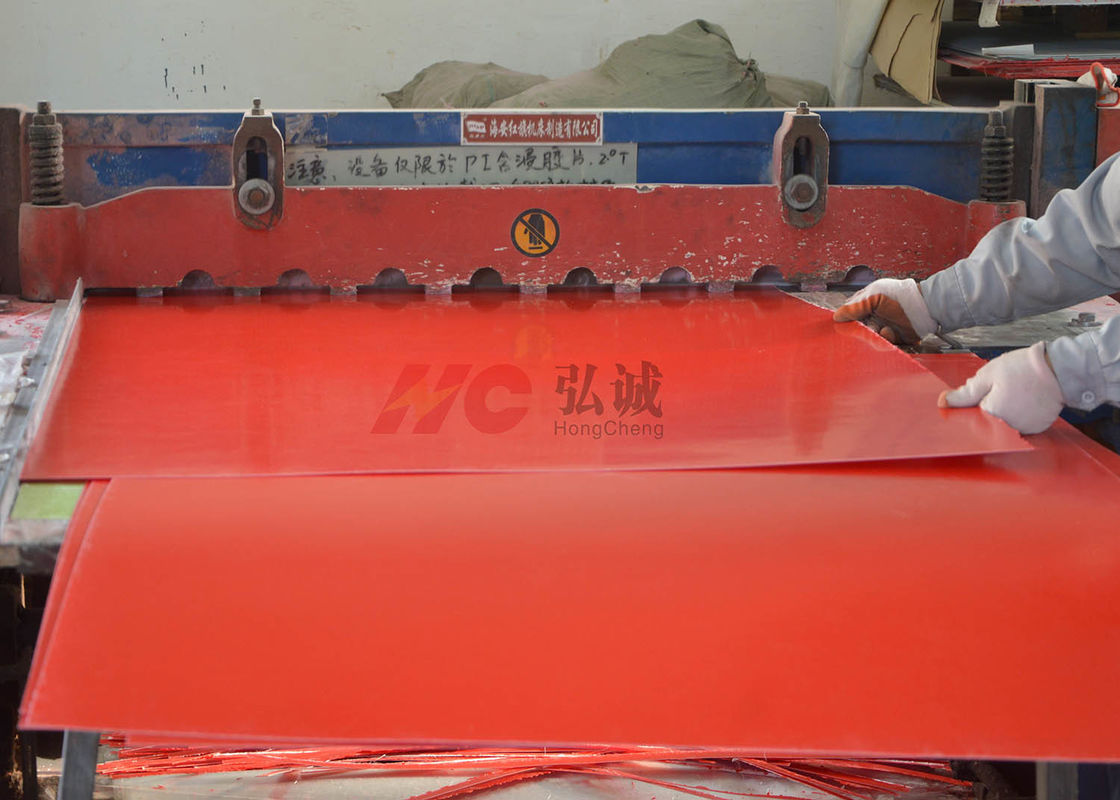

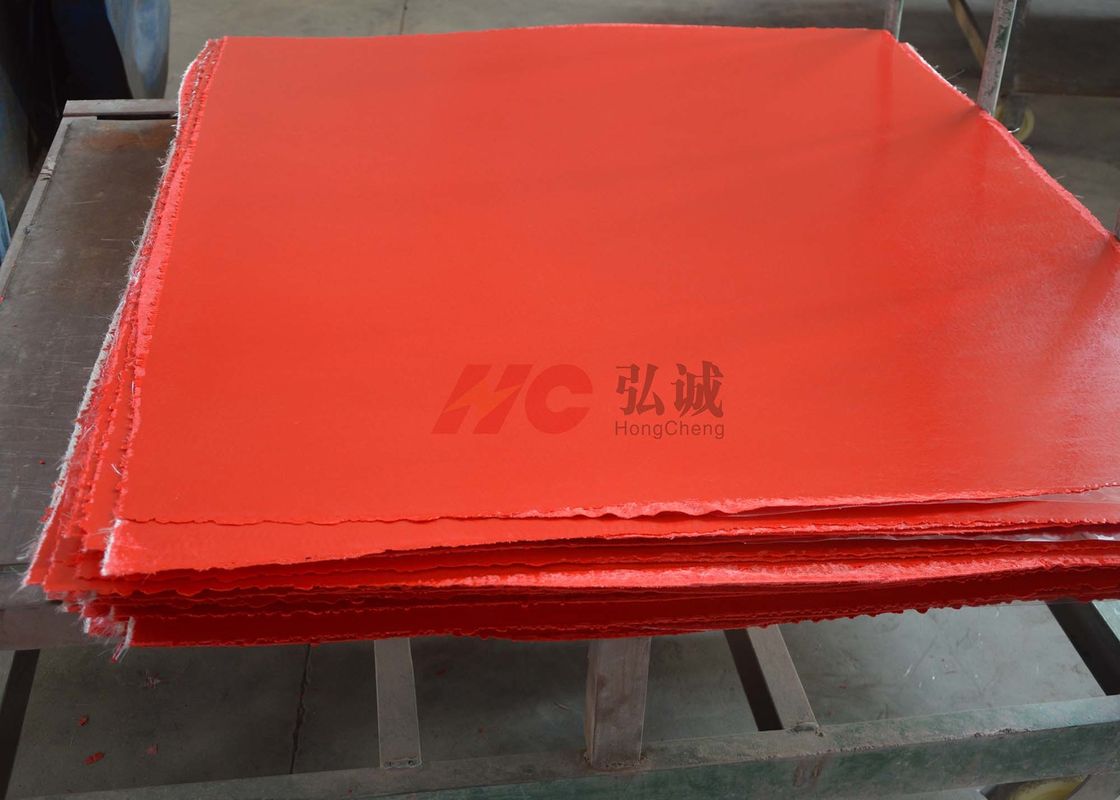

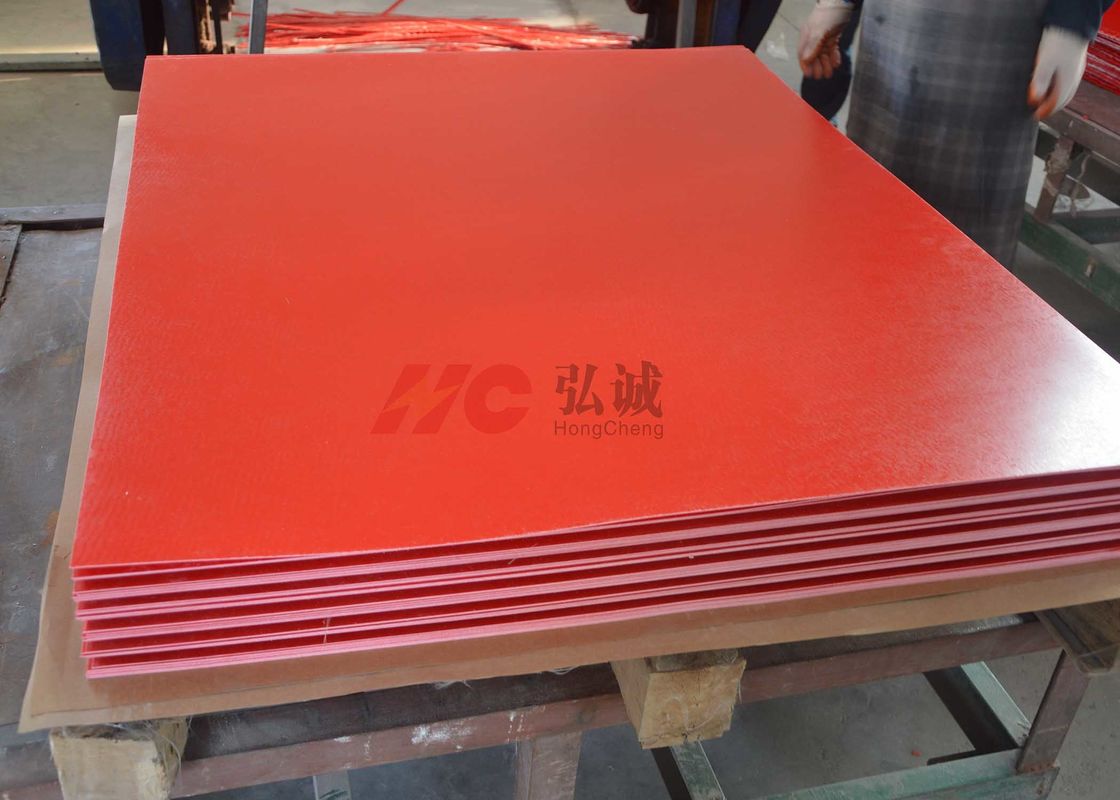

Standard Size UPGM 203 Insulation Sheet / Red Fiberglass Sheet In 39′×47′

    • Standard Size UPGM 203 Insulation Sheet / Red Fiberglass Sheet In 39′×47′
    • Standard Size UPGM 203 Insulation Sheet / Red Fiberglass Sheet In 39′×47′
    • Standard Size UPGM 203 Insulation Sheet / Red Fiberglass Sheet In 39′×47′
    • Standard Size UPGM 203 Insulation Sheet / Red Fiberglass Sheet In 39′×47′
  • Standard Size UPGM 203 Insulation Sheet / Red Fiberglass Sheet In 39′×47′

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: UPGM203

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Packaging Details: cartons,plywood pallet;crate packing
    Delivery Time: 3-5 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Water Absorption: ≤0.5% German Standard: HM2471
    Tensile Strength: ≥130Mpa Compressive Strength: ≥300Mpa
    Flame Resistance: V-0 PTI Proof Tracking Index PTI: ≥600 V
    Toxicant(Emission Halogen Etc.): Low The Anti Microbial Properties Of Bacteria: Good

    39′×47′ UPGM203 laminated sheet / Standard size of UPGM203 in 39′×47′


    Product Introduction:
    39′×47′ UPGM203 laminated sheet are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press.

    Features:
    Electrical Insulation :All grades of upgm203 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.

    Flame Resistance :upgm203 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.

    Mechanical Strength :Our upgm203 sheet have stable mechanical strength wich won’t cracked when machining

    Heat Resistance:Our upgm203 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃

    Application:
    39′×47′ UPGM203 laminated sheet are widely used in high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switch gear, as well as other types of electrical applications.


    Hong Cheng Grade HC-GPO3
    IEC 893 / EN 60893 Grade UP GM 203
    DIN 7735 Grade HM 2471
    ANSI (NEMA) Grade NEMA LI-1 GPO-3
    Items Test Method Unit Typical Values
    Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
    Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
    Water absorption ISO62:2008 % ≤0.5
    Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
    Compressive strength IEC 60893-2:2003 ≥300
    Flexural Strength IEC 60893-2:2003 ≥180
    Impact strength IEC 60893-2:2003 KJ/m2 ≥60
    Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
    Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
    Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
    Arc Resistance IEC 61621:1997 sec ≥180
    PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
    Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
    tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Temperature Index IEC 60085:2004 155
    Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Flame Resistance IEC 60893-2:2003 --- V-0
    Toxicant(Emission halogen etc.) E662 --- Low
    Other properties The anti microbial properties of bacteria G21-G22 --- good




    Standard Size UPGM 203 Insulation Sheet / Red Fiberglass Sheet In 39′×47′

    products: Laminated bus-bar
    materials: UPGM203 laminated sheet
    Description: The laminated busbar is also called the composite busbar,it provides a modern, easy design, quick assemble and clear structured distribution system.It has high power modularized connected structural parts with the characteristics of repeatable electrical performance, low impedance, anti-interference, good reliability, space saving , simple and quick assembly.Composite bus is widely used in electric and hybrid traction, electric traction equipments, cellular communication, base station, telephone switching system, large network equipment, large and medium-sized computers, power switch system, welding system, military equipments, power generation system,power conversion module for electrical equipment etc. The requirements for insulating materials are smooth and fine on surface, high planeness , arc resistance and high breakdown voltage etc.
    Bus-bar is used extensively in electric and hybrid traction system,electric traction equipment,Cellular communication,base station,Telephone exchange system,Large network equipment,large-scale computer and medium-scale computer,Power switch system,soldering system,The electric power equipment conversion module and so on.
    UPGM203 laminated sheet are special material used as Surface insulating material,interlayer insulating material,bottom insulating material which are stable and high-precision.
    Main famous cooperative enterprises:Hiconics Drive technology Co., Ltd,Suzhou West Deane Machinery inc(WDI),Shanghai Eagtop Electronic Technology Co.,Ltd;,Shenzhen Busbar Sci-Tech development Co.,Ltd,ROGERS CORPORATION and son on.

    Packing detail:plywood crate packing;plywood pallet;plastic pallet;Exports standard cartons for products
    delivery detail: 5-7 working days
