Low Water Absorption Upgm 203 Sheet High Fire Retardant UL Certification

    • Low Water Absorption Upgm 203 Sheet High Fire Retardant UL Certification
    • Low Water Absorption Upgm 203 Sheet High Fire Retardant UL Certification
    • Low Water Absorption Upgm 203 Sheet High Fire Retardant UL Certification
    • Low Water Absorption Upgm 203 Sheet High Fire Retardant UL Certification
  • Low Water Absorption Upgm 203 Sheet High Fire Retardant UL Certification

    Product Details:

    Place of Origin: Xiamen China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS/DIN5510/EN45545
    Model Number: UPGM203 fiber glass sheet

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 piece
    Packaging Details: Carton/crate packing/carton
    Delivery Time: 1-3 WORK DAYS
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name:: Red UPGM203 Nema Standard: GPO-3
    Tensile Strength: ≥130Mpa Compressive Strength: ≥300Mpa
    Flexural Strength: ≥180Mpa Impact Strength: ≥60KJ/m2

    high fire retardant low water aboorbtion UPGM 203 Insulation Sheet have UL certification


    Factory Direct Electrical Insulation Material FR-4/G10/GPO-3/Bakelite Sheet with SGS/UL/RoHS



    Product Description



    GPO (glass polyester) laminates offer a superior combination of electrical and mechanical properties such as dielectric strength, flame resistance, arc and track resistance, high-flexural strength and high-impact strength.These sheets are fiberglass reinforced thermoset polyester.They will not melt under heat and have excellent overall electrical properties.

    Product Introduction:

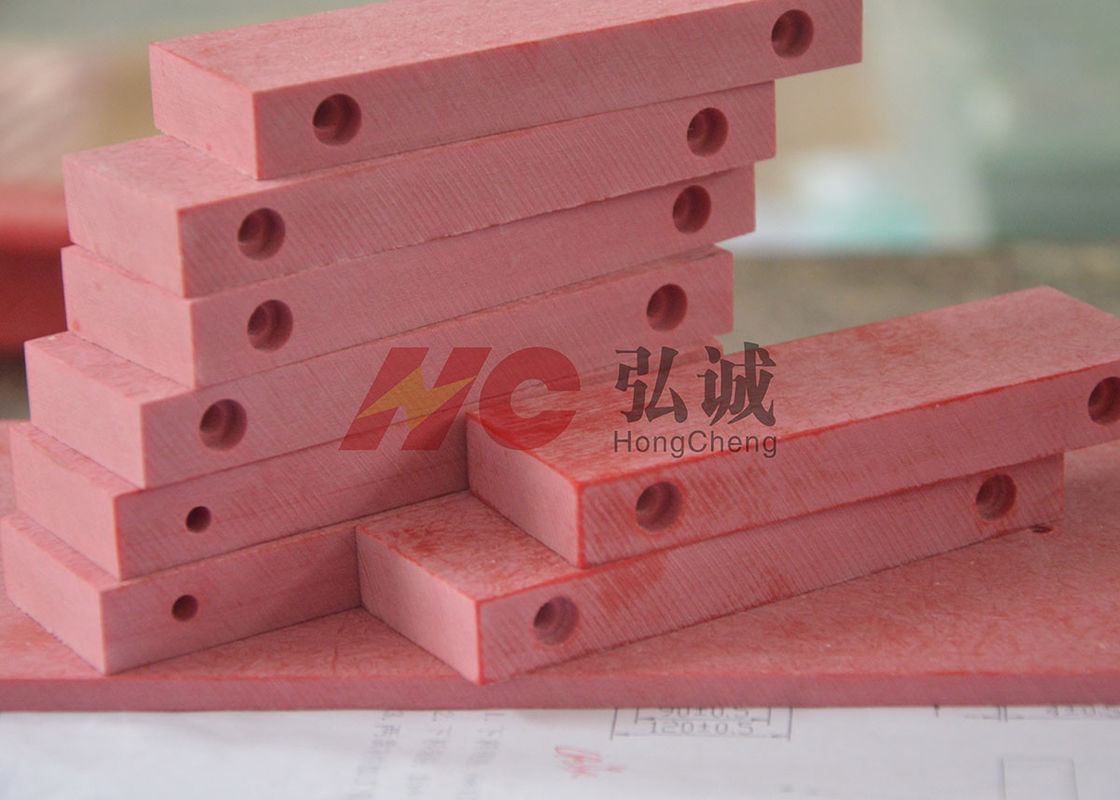

    Red upgm203 fiberglass Sheet is made of akili-free glass mat impregated with polyester resin under heat and pressure process.

    Feature:

    Red upgm203 fiberglass Sheet has good machinability,high mechanical strength,good dielectric properties,excellent proof tracking resistance and arc resistance.

    Application:

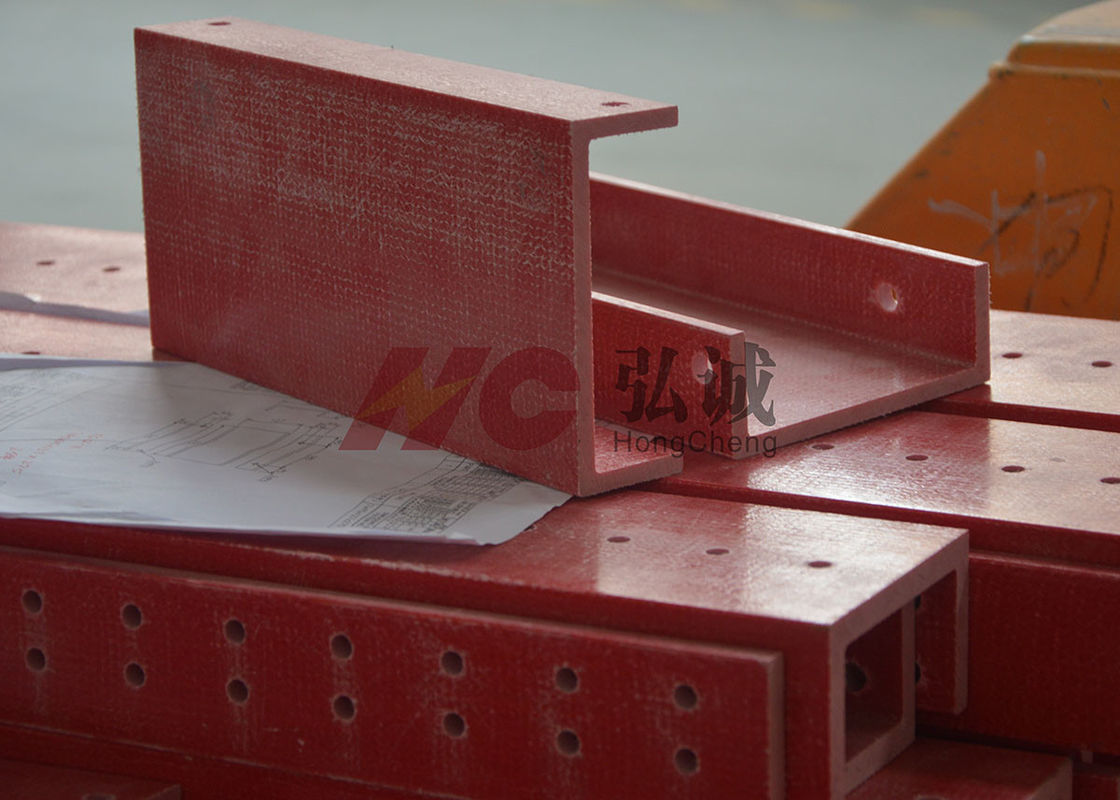

    it is applicable for making insulation structure components or parts in F-class electric motors,transformer,switchgear,circuit breakers and electrical equipments. UPGM can be moulded into all kinds of structure parts or profiles as per customer's special requirement.
    Thickness range :2mm-60mm
    Sheet Size:1000mm*1200mm



    Low Water Absorption Upgm 203 Sheet High Fire Retardant UL Certification






    Hong Cheng Grade HC-GPO3
    IEC 893 / EN 60893 Grade UP GM 203
    DIN 7735 Grade HM 2471
    ANSI (NEMA) Grade NEMA LI-1 GPO-3
    Items Test Method Unit Typical Values
    Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
    Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
    Water absorption ISO62:2008 % ≤0.5
    Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
    Compressive strength IEC 60893-2:2003 ≥300
    Flexural Strength IEC 60893-2:2003 ≥180
    Impact strength IEC 60893-2:2003 KJ/m2 ≥60
    Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
    Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
    Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
    Arc Resistance IEC 61621:1997 sec ≥180
    PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
    Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
    tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Temperature Index IEC 60085:2004 155
    Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Flame Resistance IEC 60893-2:2003 --- V-0
    Toxicant(Emission halogen etc.) E662 --- Low
    Other properties The anti microbial properties of bacteria G21-G22 --- good

    high fire retardant low water aboorbtion UPGM 203 Insulation Sheet have UL certification used in MNS,VD4 Switch cabinet

    Low Water Absorption Upgm 203 Sheet High Fire Retardant UL Certification

    Description: Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are UPGM203 laminated sheet

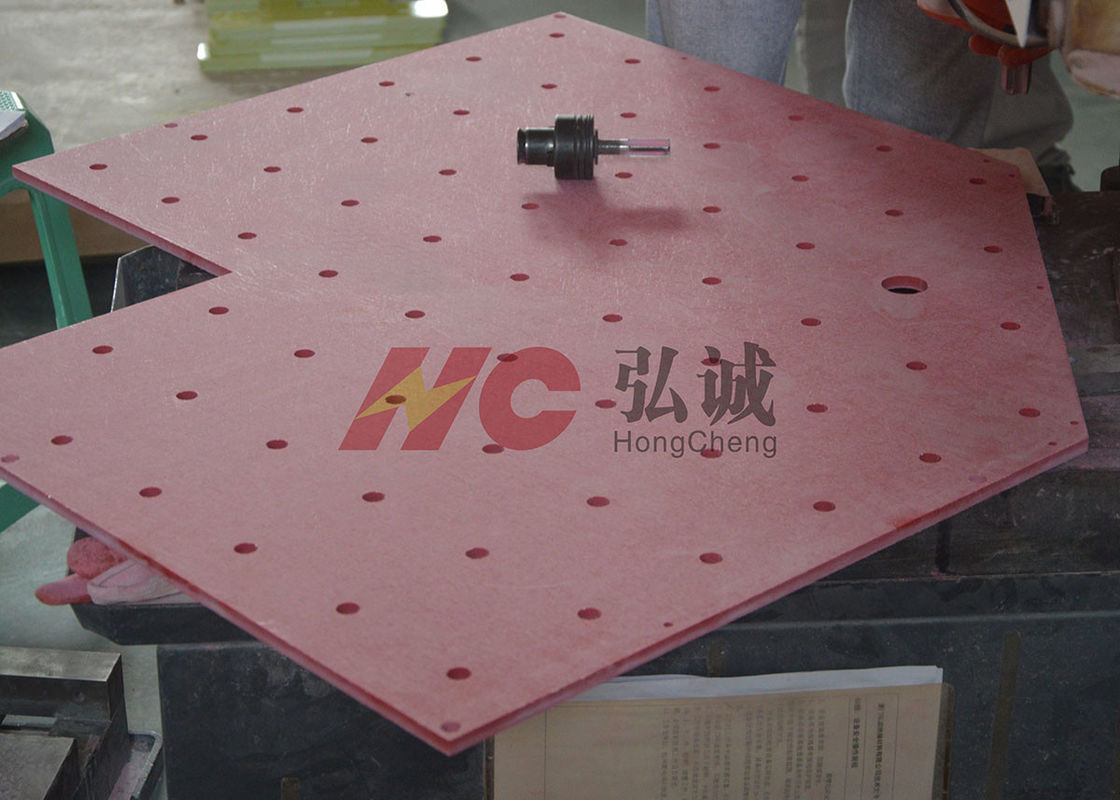

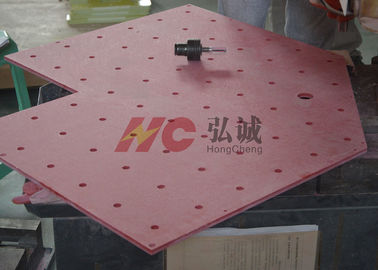

    Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
    Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.
