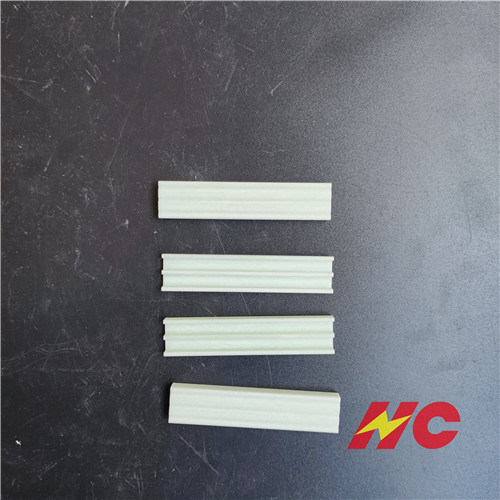

UPGM 203 polyester resin laminated sheet / GPO3 insulating sheet With RoHS Certified
Product Introduction:
UPGM 203 polyester resin laminated sheet is combination of electrical and mechanical properties such as dielect ric strength ,flame resistance,arc and track resistance,high-flexural and high-impact strength.
Feature:
Application:
The upgm203 laminated sheet is Widely used in the low voltage electrical industries such as rail transportation, power generation, wind energy, power transmission and distribution, metallurgy, mining, petrochemical, public transportation and other fields.
Thickness range :2mm-60mm
Sheet Size:1000mm*1200mm;1230mm*2100mm
Hong Cheng Grade | HC-GPO3 | |||
IEC 893 / EN 60893 Grade | UP GM 203 | |||
DIN 7735 Grade | HM 2471 | |||
ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
Items | Test Method | Unit | Typical Values | |
Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
Water absorption | ISO62:2008 | % | ≤0.5 | |
Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
Compressive strength | IEC 60893-2:2003 | ≥300 | ||
Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
Temperature Index | IEC 60085:2004 | ℃ | 155 | |
Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
Toxicant(Emission halogen etc.) | E662 | --- | Low | |
Other properties | The anti microbial properties of bacteria | G21-G22 | --- | good |
Packing Introoduction:
Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further
