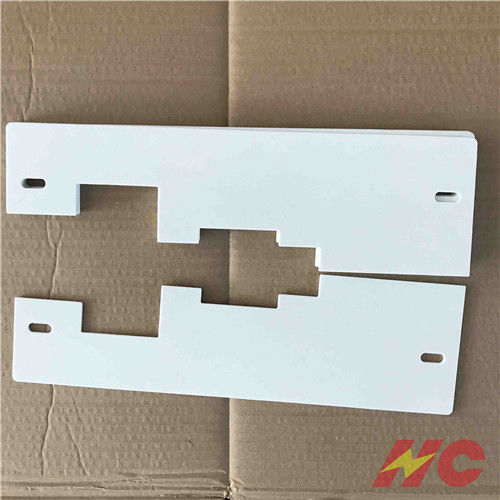

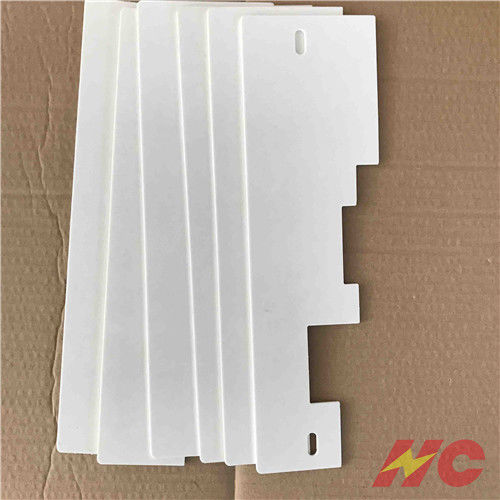

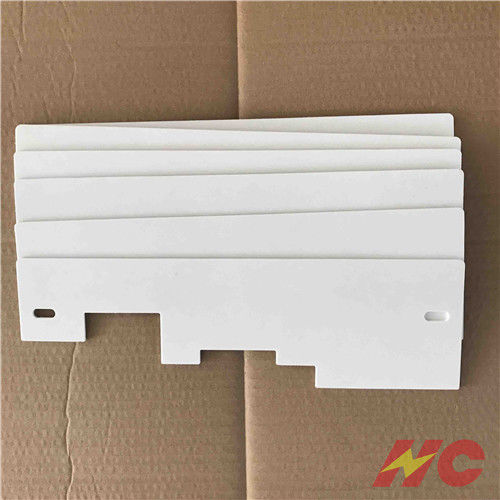

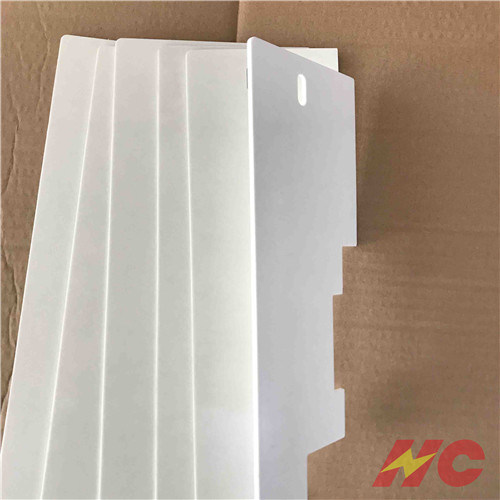

V-0 Non Halogen UPGM203 GPO3 Fiberglass Sheet

V-0 Non Halogen UPGM203 GPO3 Fiberglass Sheet

Products - Thermoset Polyester
  • High Light

    Non Halogen GPO3 Fiberglass Sheet

    ,

    V-0 GPO3 Fiberglass Sheet

    ,

    UPGM203 Fiberglass Laminate Sheet

  • Product Name
    White GPO-3 Fiberglasssheet
  • Product Color
    White / Red / Yellow /Gray
  • Thickness Range
    0.5-60mm
  • Compressive Strength
    ＞300Mpa
  • Flexural Strength
    ＞180Mpa
  • Impact Strength
    ≥60KJ/m2
  • Tensile Strength
    ≥130Mpa
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL（E344098）/RoHS 2.0 /Reach
  • Minimum Order Quantity
    1000kg
  • Packaging Details
    crate packing/ cartons / pallet
  • Delivery Time
    3-5 work days
  • Payment Terms
    T/T
  • Supply Ability
    500kg per day

V-0 Non Halogen UPGM203 GPO3 Fiberglass Sheet

  • V-0 Non Halogen UPGM203 GPO3 Fiberglass Sheet
  • V-0 Non Halogen UPGM203 GPO3 Fiberglass Sheet
  • V-0 Non Halogen UPGM203 GPO3 Fiberglass Sheet
  • V-0 Non Halogen UPGM203 GPO3 Fiberglass Sheet
Get Price Contact Now

White GPO-3 Fiberglasssheet I White UPGM203 laminated hseet Non Halogen

GPO-3 sheet or related products are consists of ,GPO3 sheet offer a superior combination of electrical and mechanical properties such as dielect ric strength ,flame resistance,arc and track resistance,high-flexural and high-impact strength.

our laminates also have superior consistency in thickness, punchability and property control. Add a high degree of quality and cost-ffectiveness.

These sheets are fiberglass reinforced thermoset polyester,They will not melt under heat and have excellent overall electrical properties .all grades are UL Recognized.



Features:

Electrical Insulation :All grades of GPO3 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.



Flame Resistance :GPO3 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.



Mechanical Strength :Our GPO3 sheet have stable mechanical strength wich won’t cracked when machining



Heat Resistance:Our GPO3 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃

Application:

GPO-3 fiberglass Sheet are widely used in high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switch gear, as well as other types of electrical applications.

V-0 Non Halogen UPGM203 GPO3 Fiberglass Sheet 0



Hong Cheng Grade HC-GPO3
IEC 893 / EN 60893 Grade UP GM 203
DIN 7735 Grade HM 2471
ANSI (NEMA) Grade NEMA LI-1 GPO-3
Items Test Method Unit Typical Values
Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
  Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
  Water absorption ISO62:2008 % ≤0.5
Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
  Compressive strength IEC 60893-2:2003   ≥300
  Flexural Strength IEC 60893-2:2003   ≥180
  Impact strength IEC 60893-2:2003 KJ/m2 ≥60









Electrical properties

 Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
  Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
  Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
  Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
  Arc Resistance IEC 61621:1997 sec ≥180
  Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
  Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
  Dissipation Factor IEC 60893-2:2003 --- ≤0.03
Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
  Temperature Index IEC 60085:2004 ℃ 155
Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
  Flame Resistance IEC 60893-2:2003 --- V-0
  Toxicant(Emission halogen etc.) E662 --- Low
Other properties The anti microbial properties of bacteria G21-G22 --- good






V-0 Non Halogen UPGM203 GPO3 Fiberglass Sheet 1

Methods: Precision Engraving
Application: Material thickness 0.5-100mm, machining tolerance according to the ISO 2768-M
Advantages: 1. Proficient in advanced programming software, such as: Mcam9.1, UG software programming , to meet the requirements of machining on complex surface;

2. We have a senior R&D engineers team and the team have the ability in designing the fixture independently to meet production requirements of high quality , high yield and lower cost.

3. To meet the customers’ requirements , company owned dozens of high-precision CNC equipments to short the delivery time .

4. The company have dozens of No.850&No.650 CNC machining center (with tool storage) , these machines can be used to complete multistep processes of complex parts at one-time.

5. The company owned several Large gantry CNC machines in 1000*1200mm , large panel parts can be completed at one-time by high-precision processing and avoid deviation from machining.
