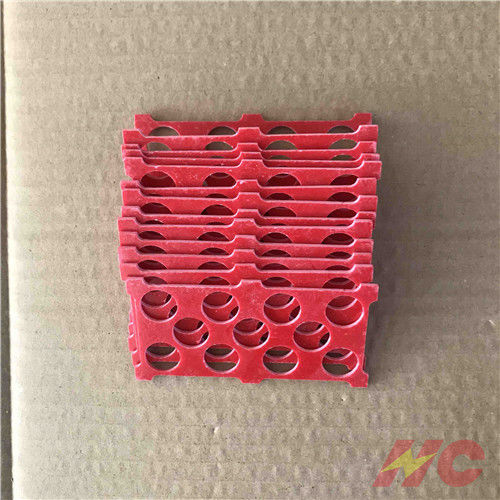

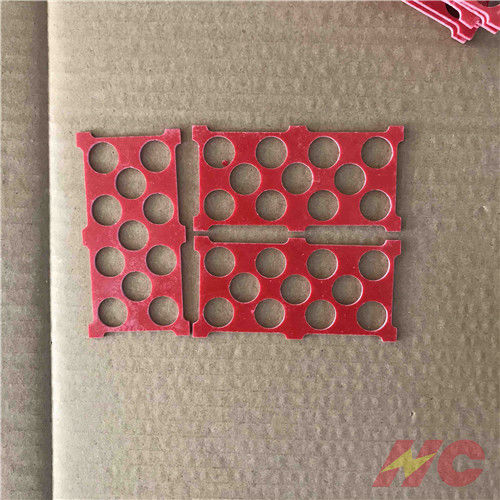

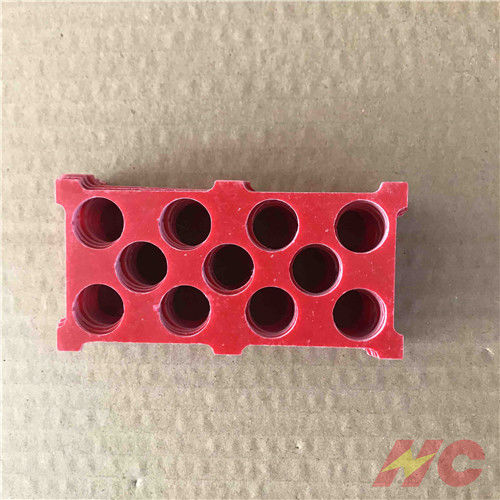

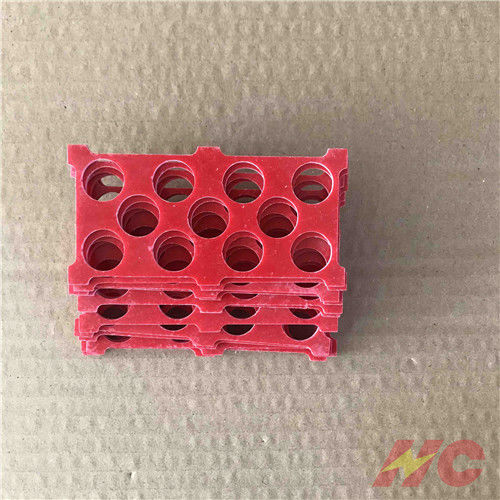

Arc Resistant UPGM203 GPO3 Fiberglass Board Sheets

Arc Resistant UPGM203 GPO3 Fiberglass Board Sheets

  • High Light

    UPGM203 Fiberglass Board Sheets

    ,

    Arc Resistant Fiberglass Board Sheets

    ,

    Arc Resistant Fiberglass Insulation Sheet

  • Flame Resistance
    V-0
  • Flexural Strength
    ≥180Mpa
  • IEC Standard
    UPGM203
  • German Standard
    HM2471
  • Oxygen Index
    ≥ 30%O2
  • Toxicant(Emission Halogen Etc.)
    Low
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL(E344098)/RoHS 2.0 /Reach/SGS
  • Model Number
    GPO-3
  • Packaging Details
    Carton/Pallet/wooden box
  • Payment Terms
    T/T
  • Supply Ability
    2000kg pr day

Arc Resistant UPGM203 GPO3 Fiberglass Board Sheets

GPO3 Fiberglass Board / UPGM203 Insulation Sheets Excellent PTI And Arc Resistance


Product Introduction:

Excellent heat resistance FR5 H-class epoxy sheet are the high temperature resistant rigid plate insulating materials joint developed by ISOLA Taiwan and our company.



Excellent heat resistance FR5 H-class epoxy sheet are widely used in high voltage motor and electrical equipment as insulating structures,such as high-tension switch cubicle,transformer,frequency changer,converter,DC motor,AC contactor .automobile industry field.all kinds of switch cubicle such as bursting disk,lining pate,arc extinguishing chamber,arcing cylinder,arcing piece,flash barrier,wiring board,terminal plate insulating supports;strut member and bus bar supports in switchgear & transformer;the armature parts of electrical machine such as cover plate,slot wedge,stator,gasket,shims,carbon brush etc.



Product Advantage:

  • High temperature resistance more than 180℃
  • Excellent Fire Retardant(UL 94 V-0 Grade)
  • Excellent Voltage Resistance(electric strength ≥16KV/mm)
  • Excellent Water Resistance(Water absorption ≤0.2%)
  • Excellent Heat Resistance(Class F)
  • Excellent thermal impact resistance(Temp.Index:-273℃ to +180℃)
  • Excellent mechanical processability &high degree of automation processing
  • RoHS,Reach Certified products

Application:

it is applicable for making insulation structure components or parts in F-class electric motors,transformer,switchgear,circuit breakers and electrical equipments. UPGM can be moulded into all kinds of structure parts or profiles as per customer's special requirement.



Thickness range :2mm-60mm



Sheet Size:1000mm*1200mm



Main Color:Red,White ,Brown,Yellow or Gray

Arc Resistant UPGM203 GPO3 Fiberglass Board Sheets 0


Hong Cheng Grade HC-GPO3
IEC 893 / EN 60893 Grade UP GM 203
DIN 7735 Grade HM 2471
ANSI (NEMA) Grade NEMA LI-1 GPO-3
Items Test Method Unit Typical Values
Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
Water absorption ISO62:2008 % ≤0.5
Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
Compressive strength IEC 60893-2:2003 ≥300
Flexural Strength IEC 60893-2:2003 ≥180
Impact strength IEC 60893-2:2003 KJ/m2 ≥60
Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
Arc Resistance IEC 61621:1997 sec ≥180
PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
Temperature Index IEC 60085:2004 155
Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
Flame Resistance IEC 60893-2:2003 --- V-0
Toxicant(Emission halogen etc.) E662 --- Low
Other properties The anti microbial properties of bacteria G21-G22 --- good

product Certifications:

Arc Resistant UPGM203 GPO3 Fiberglass Board Sheets 1


GPO-3 fiberglass Sheet used in Automotive drive

Arc Resistant UPGM203 GPO3 Fiberglass Board Sheets 2

materials: Brown GPO-3 fiberglass Sheet
Description: Automobile and electronics refer to the use of insulating materials in the automobile and electronics industry. The insulation materials are used in automobiles such as motors, wipers driving system carbon brush etc.The application of insulating materials in the electronics industry is more extensive, such as leather cover, PCB and so on.The commonly materials used in this industry are HC-GPO3/HC-FR4/HC-3240 etc.
Auto motor are mainly high power density Brushless DC motor,are used extensively in electric window,Anti lock brake system,Automobile air conditioner,Engine management module,Car seat,Car lock,Rearview mirror.
The Auto motor consist of Electric power steering motor,Air conditioning blower,Dual clutch transmission,Electronic brake system motor,Cooling fan assembly,Control cooling air volume module,
GPO-3 red sheet(HCT),FR-4 white grinded sheet are used ectensively as CBH CARBON BRUSF,slot wedge,removable cover plate,Stator slot wedge,fixation gasket,thin gasket.
Main famous cooperative enterprises:Shanghai Brose Electric Motors Co., Ltd,Zhejiang Huanfang Automobile electric Co.,Ltd
