Home ProductsInsulation Dog Bone

Xiamen Hongcheng Insulating Material Co., Ltd.

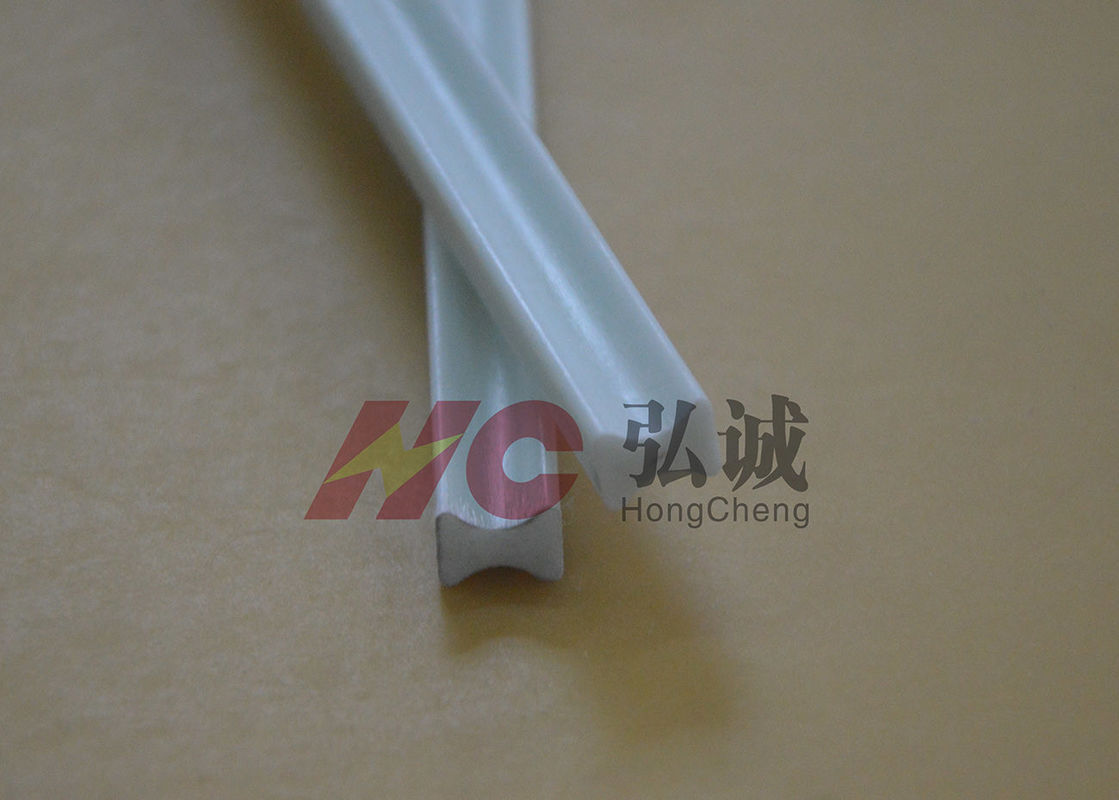

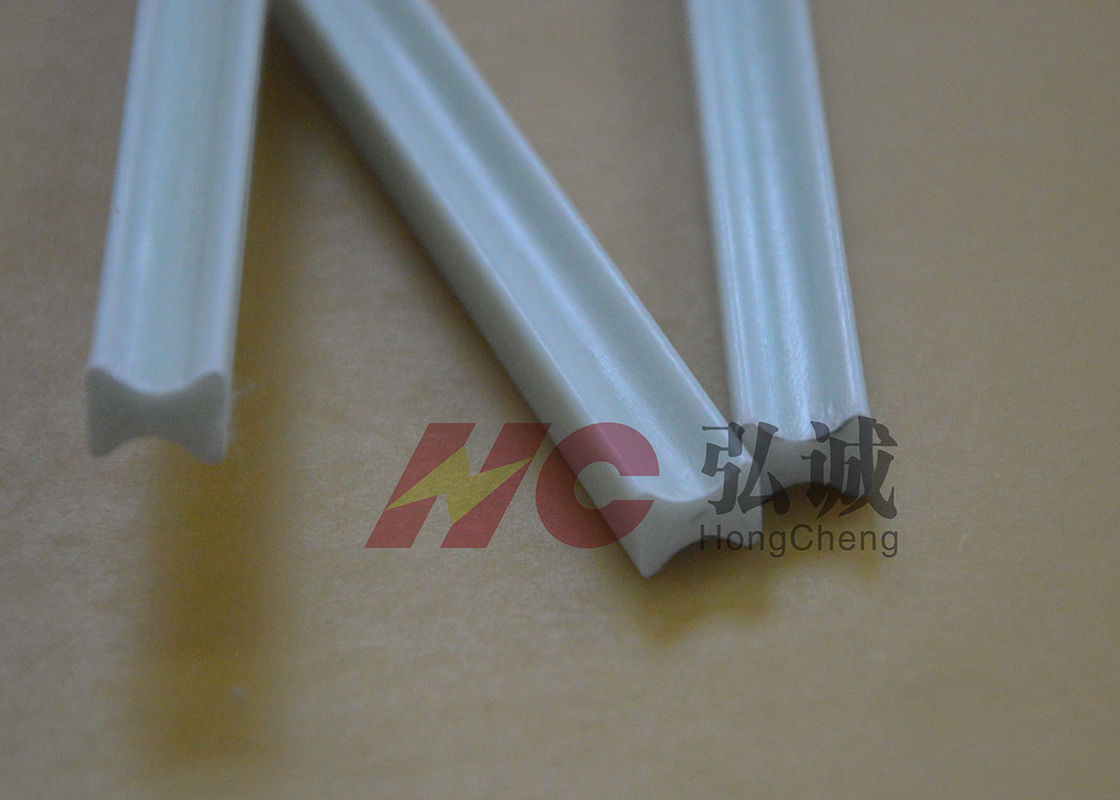

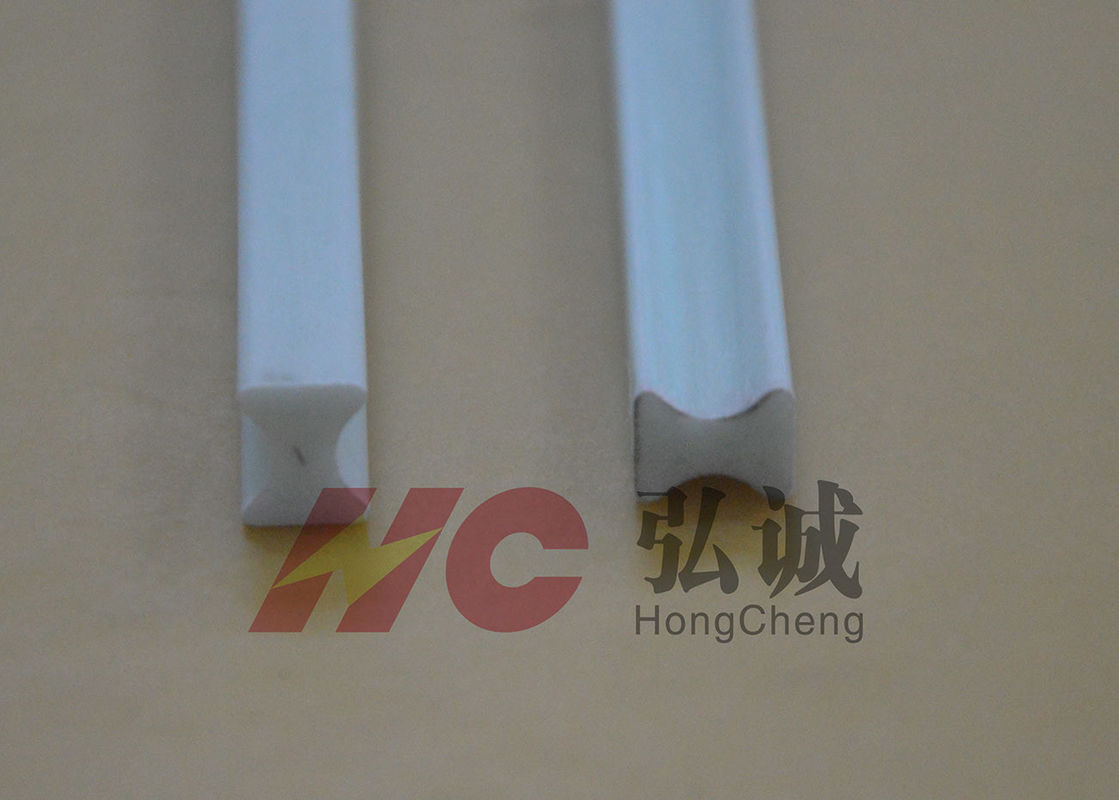

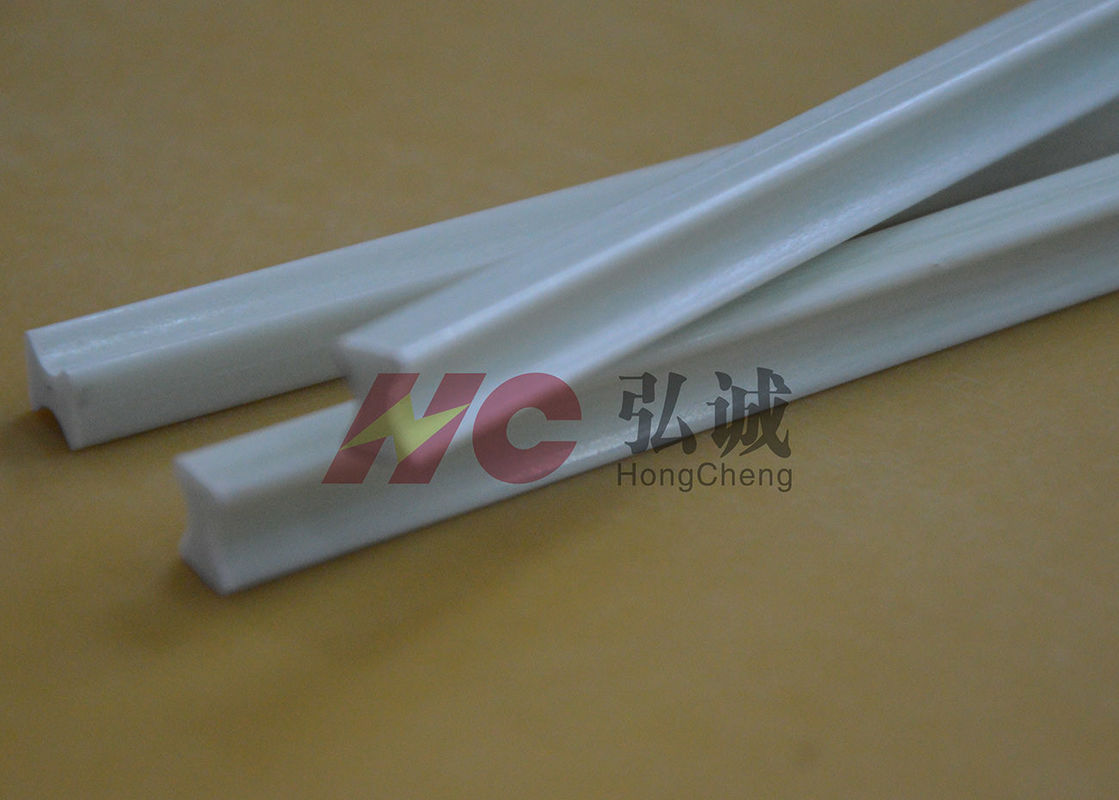

Environmentally - Friendly Insulation Dog Bone High Tensile Strength RoHS Certified

    • Environmentally - Friendly Insulation Dog Bone High Tensile Strength RoHS Certified
    • Environmentally - Friendly Insulation Dog Bone High Tensile Strength RoHS Certified
    • Environmentally - Friendly Insulation Dog Bone High Tensile Strength RoHS Certified
    • Environmentally - Friendly Insulation Dog Bone High Tensile Strength RoHS Certified
  • Environmentally - Friendly Insulation Dog Bone High Tensile Strength RoHS Certified

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 U Channel Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Coefficient Of Heat Conduction: ≤10.79W/(m2×K)
    Coefficient Of Thermal Expansion: ≤2×10-5 Arc Resistance: >180S

    RoHS Certified Dog Bone / RoHS Certified I-bracing / Environment-friendly insulation dog bone


    Introduction:

    GPO-3 Dog bone/I-shaped Bracing is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Advantages:





    Products with high strength, better than foreign products, not cracking, non Explosive Edge

    Excellent size, space stability

    Heat resistant H class(TI ≥ 180°C)

    Heat resistant C class(TI ≥ 200°C)

    Excellent compressive strength(Cross ≥ 80MPa)

    Excellent bending strength(≥ 380MPa)

    Excellent bonding strength (non cracking in foil and wire wound)

    Applicaton: GPO-3 Profile Shapes & Bracing Series has space stability and high degree of automation processing,it is used extensively in equipments of power controller& power transmits as cable bridge & angle insulation; insulating channel of bus duct &fuse;insulating support of inverter converter etc. GPO-3 bracing series is our company special for the transformer ,reactor,large dry transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil of wire wound around the stability of bracing structure and non-cracking



    Environmentally - Friendly Insulation Dog Bone High Tensile Strength RoHS Certified


    Diagram:

     Environmentally - Friendly Insulation Dog Bone High Tensile Strength RoHS Certified

    Specification sheet:

    Product Name Item No. Size
    Dogbone HC-XC-D-W 6*8
    HC-XC-D-W 8*8
    HC-XC-D-W 8*10
    HC-XC-D-W 8*12
    HC-XC-D-W 10*10
    HC-XC-D-W 10*12
    HC-XC-D-W 10*13
    HC-XC-D-W 10*16
    HC-XC-D-W 10*19
    HC-XC-D-W 10*20
    HC-XC-D-W 13*16
    HC-XC-D-W 16*24

    RoHS Certified Dog Bone used in Industrial Equipment

    Environmentally - Friendly Insulation Dog Bone High Tensile Strength RoHS Certified

    The industrial equipments refer to machinery manufacturing equipment, electromechanical integrated equipment, medical equipment, household appliance, central air conditioning compressor etc. The application of insulation material in industrial equipment is different, the emphasis is excellent mechanical performance ,easy to install, environmental protection and seal etc. The commonly materials used in it are HC-GPO3/HC-FR4
