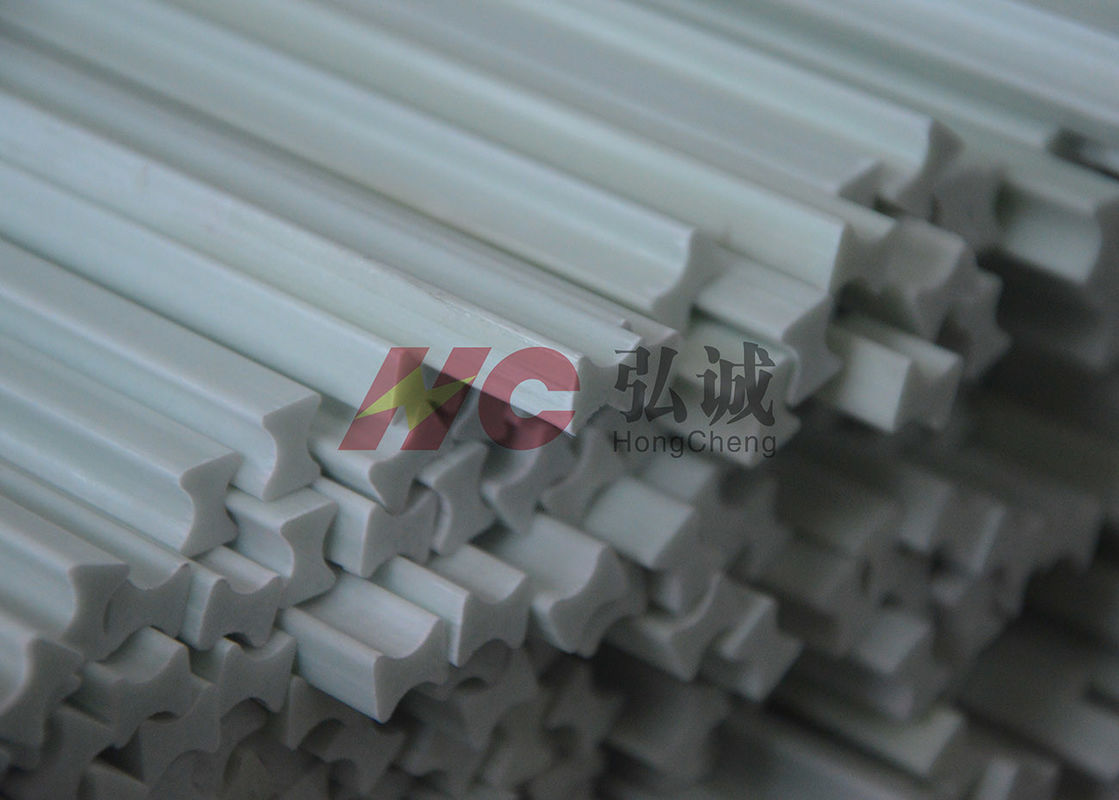

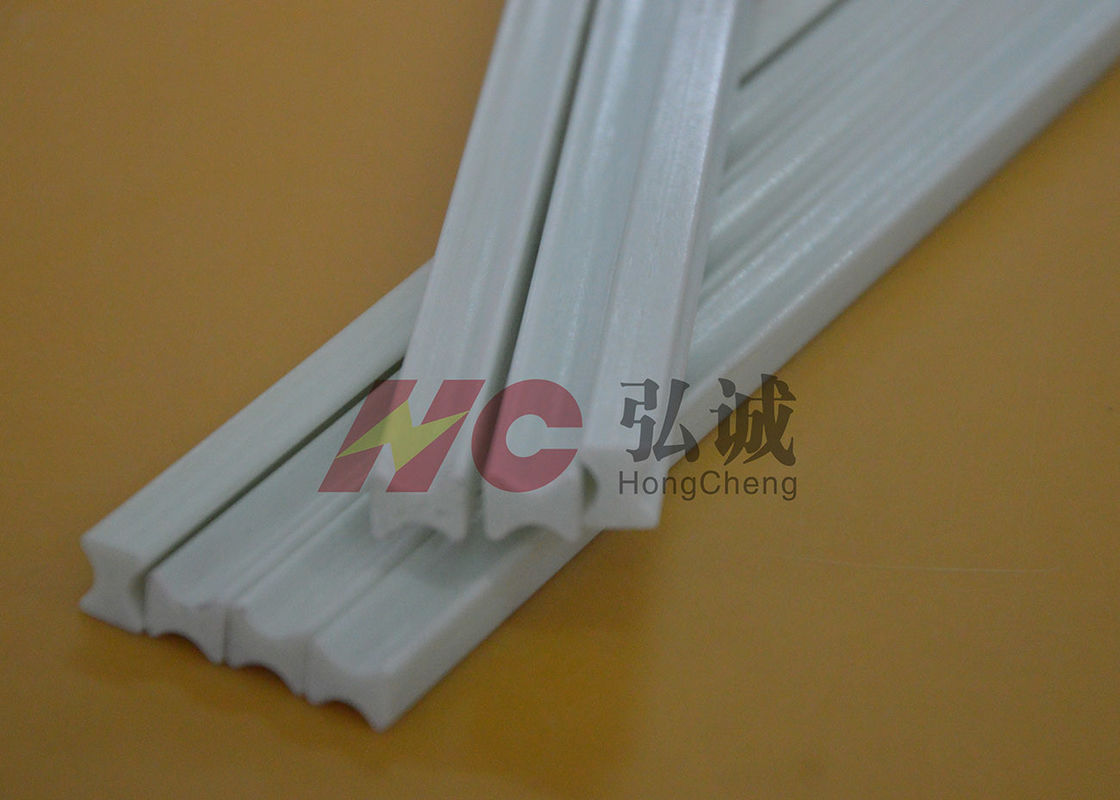

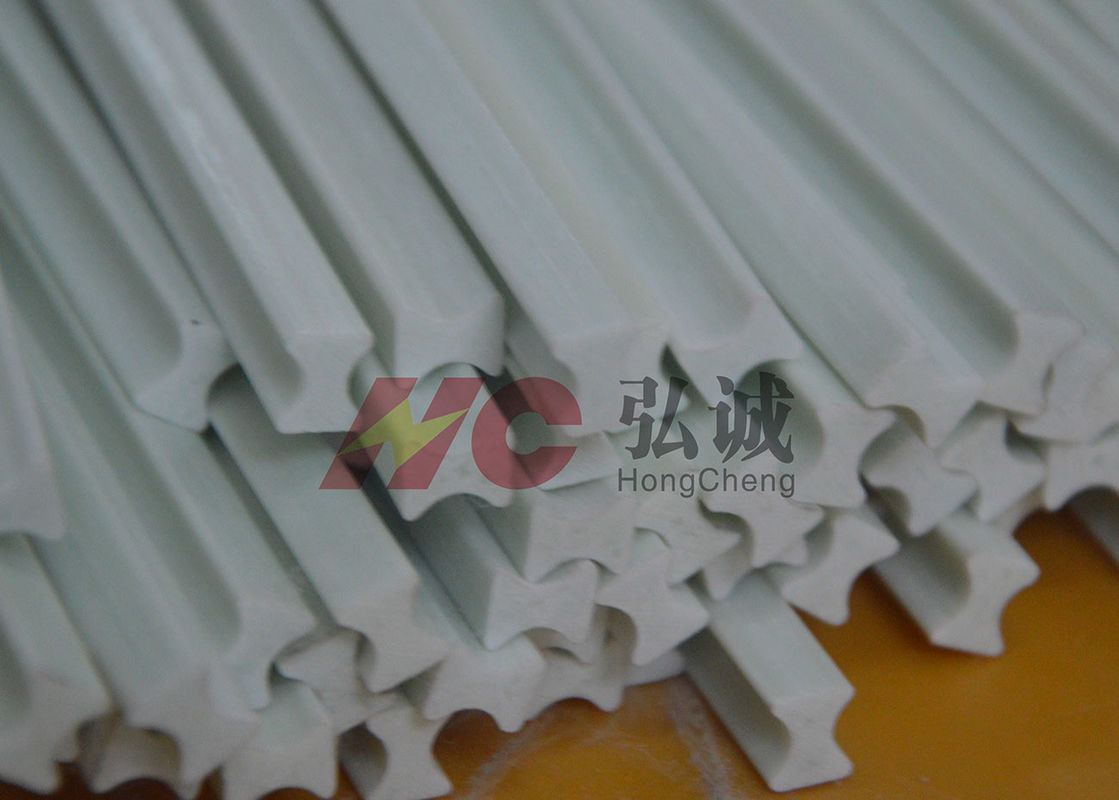

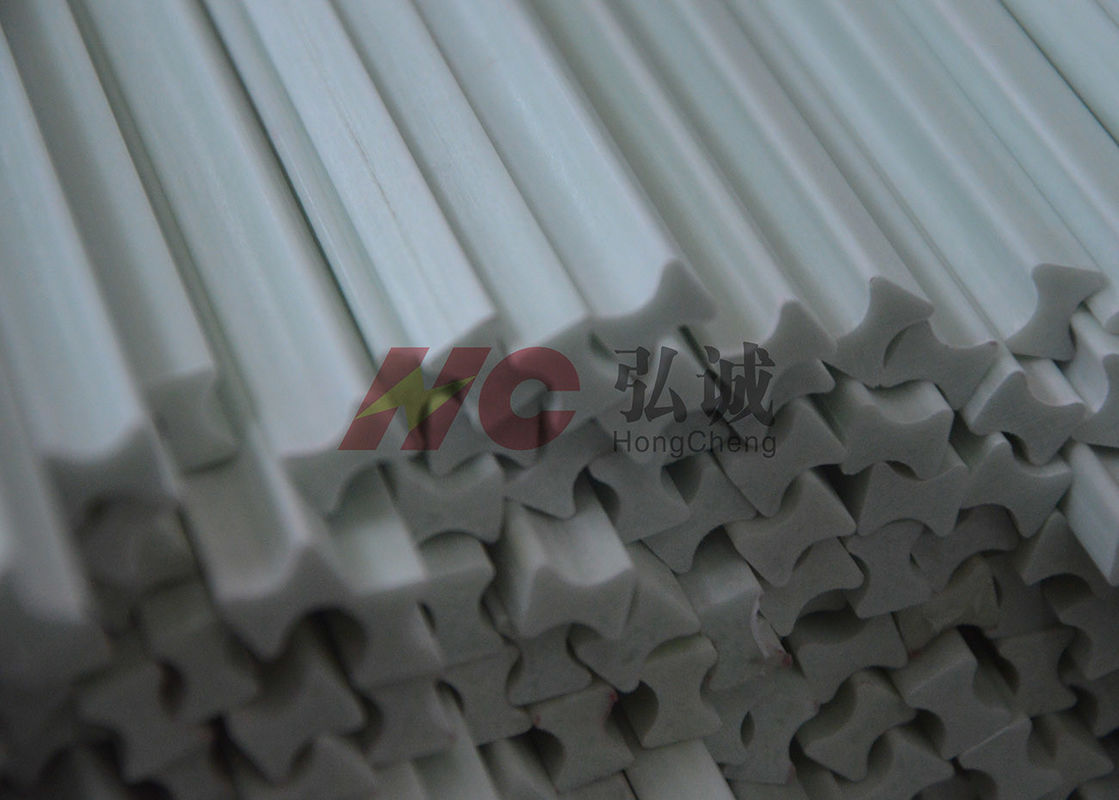

High Performance Insulation Dog Bone IEC Testing Center Certified I - Bracing

    • High Performance Insulation Dog Bone IEC Testing Center Certified I - Bracing
    • High Performance Insulation Dog Bone IEC Testing Center Certified I - Bracing
    • High Performance Insulation Dog Bone IEC Testing Center Certified I - Bracing
    • High Performance Insulation Dog Bone IEC Testing Center Certified I - Bracing
  • High Performance Insulation Dog Bone IEC Testing Center Certified I - Bracing

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: Insulation Dog Bone Product Color: Red/Gray/White
    Product Size: 12 Kinds Of Specifications Tensile Strength: >400Mpa
    Flexural Strength: >650Mpa

    High performance insulation dog bone / IEC testing center certified Dog Bone / IEC testing center certifi I-bracing


    Product Description:

    GPO-3 Dog bone/I-shaped Bracing is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Product Feature:

    Non-cracking,space stability

    Heat resistant:H class,heat resisitance up to 180℃

    Compressive strength:Cross ≥ 80MPa which is higher than most other manufacturer

    bending strength: which is up to 380 Mpa

    bonding strength:non cracking in foil and wire wound



    Application:

    transformer ,reactor,large dry transformer

    High Performance Insulation Dog Bone IEC Testing Center Certified I - Bracing


    Diagram:

     High Performance Insulation Dog Bone IEC Testing Center Certified I - Bracing


    Specification sheet:

    Product Name Item No. Size
    Dogbone HC-XC-D-W 6*8
    HC-XC-D-W 8*8
    HC-XC-D-W 8*10
    HC-XC-D-W 8*12
    HC-XC-D-W 10*10
    HC-XC-D-W 10*12
    HC-XC-D-W 10*13
    HC-XC-D-W 10*16
    HC-XC-D-W 10*19
    HC-XC-D-W 10*20
    HC-XC-D-W 13*16
    HC-XC-D-W 16*24

    High performance insulation dog bone used in New energy

    High Performance Insulation Dog Bone IEC Testing Center Certified I - Bracing

    New energy in the energy field is a trend that the world has been advocating for development, it has been developing from traditional oil and coal to cleaner and more environmentally friendly energy sources such as solar power and wind power etc..
    At the same time, clean energy has been using to develop energy storage areas such as lithium batteries, supercapacitors and energy-saving components.With the development of the industry, the insulation materials of our company have expanded more market and R&D direction
    Our GPO-3sheet are widely used in new energy field,including Wind power,photovoltaic,power battery etc.
