UL Certified Glass Fiber Dog Bone / Pultruded Dog Bone With Fire Retardant

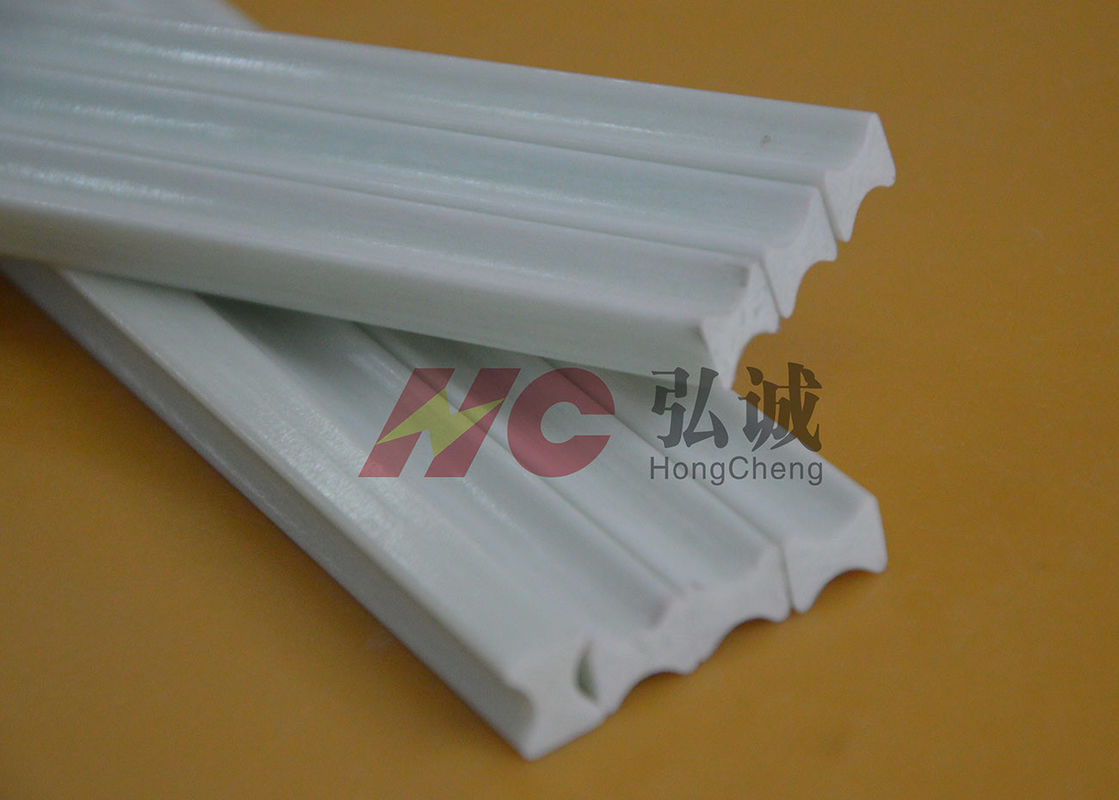

    • UL Certified Glass Fiber Dog Bone / Pultruded Dog Bone With Fire Retardant

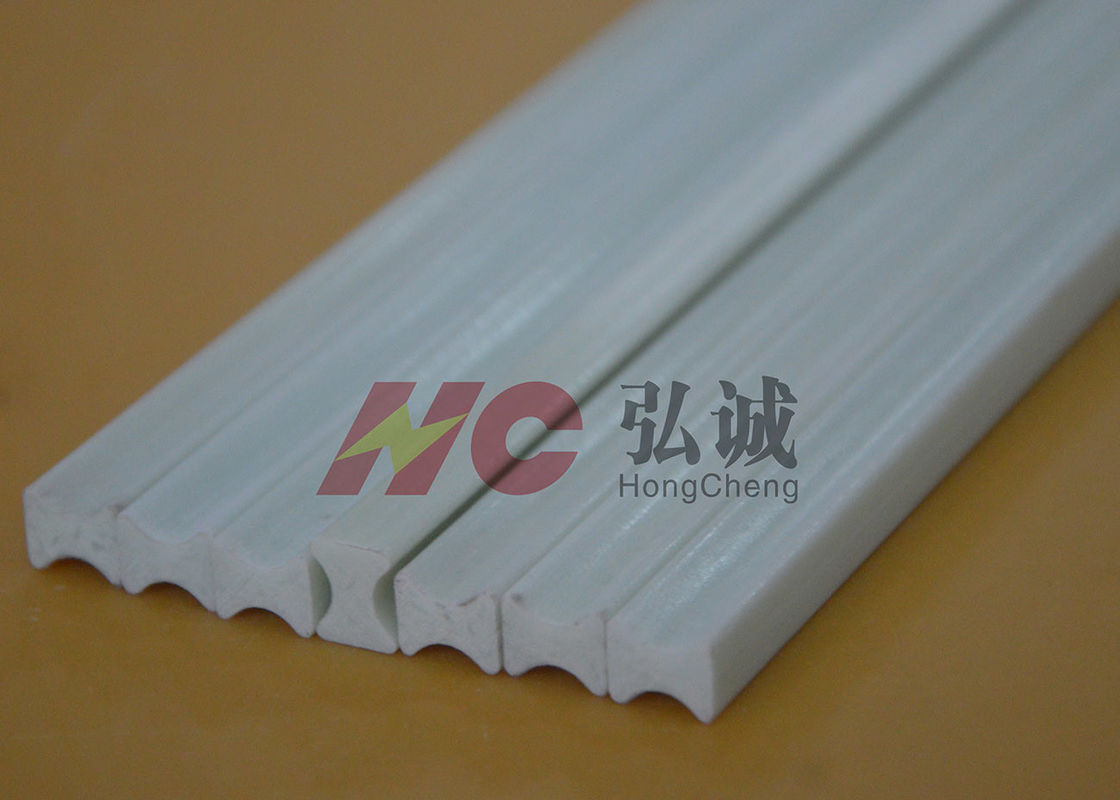

    • UL Certified Glass Fiber Dog Bone / Pultruded Dog Bone With Fire Retardant

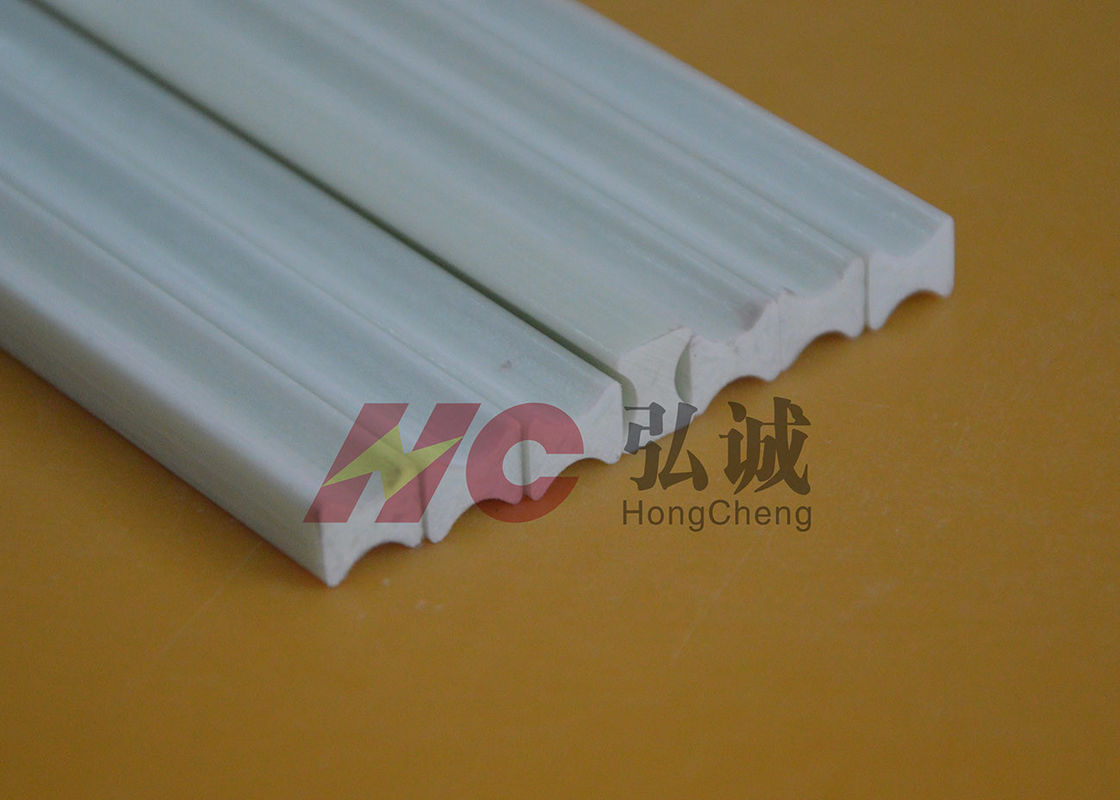

    • UL Certified Glass Fiber Dog Bone / Pultruded Dog Bone With Fire Retardant

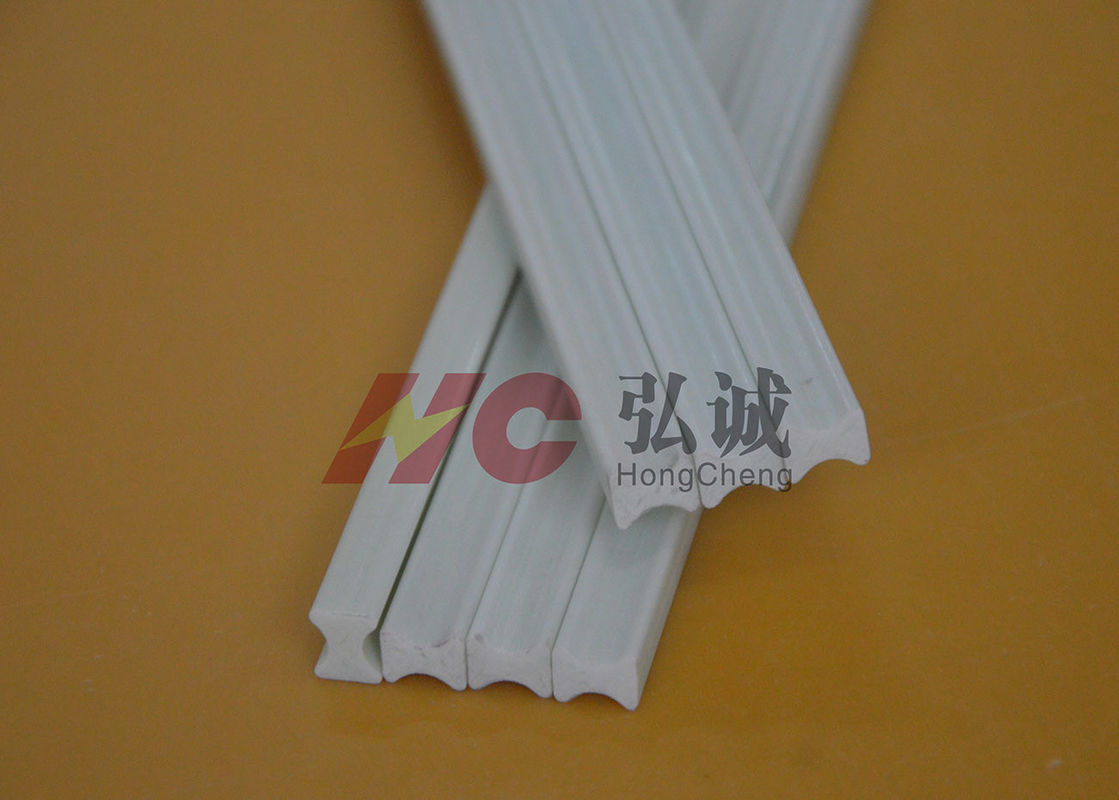

    • UL Certified Glass Fiber Dog Bone / Pultruded Dog Bone With Fire Retardant
  • UL Certified Glass Fiber Dog Bone / Pultruded Dog Bone With Fire Retardant

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: Insulation Dog Bone Product Color: Red/Gray/White
    Product Size: 12 Kinds Of Specifications Water Absorption: <0.5%
    Volume Resistivity: ≥1.0 X 1012Ω·m Surface Resistivity: ≥ 1.0×1014Ω

    Dog bone wtith Fire retardant / UL certified Dog Bone / UL certified I-bracing


    Product Description:



    GPO-3 Dog bone/I-shaped Bracing is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Product Advantages:



    Products with high strength, better than foreign products, not cracking, non Explosive Edge

    Excellent size, space stability

    Heat resistant H class(TI ≥ 180°C)

    Heat resistant C class(TI ≥ 200°C)

    Excellent compressive strength(Cross ≥ 80MPa)

    Excellent bending strength(≥ 380MPa)

    Excellent bonding strength (non cracking in foil and wire wound)



    GPO-3 Profile Shapes & Bracing Series has space stability and high degree of automation processing,it is used extensively in equipments of power controller& power transmits as cable bridge & angle insulation; insulating channel of bus duct &fuse;insulating support of inverter converter etc. GPO-3 bracing series is our company special for the transformer ,reactor,large dry transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil of wire wound around the stability of bracing structure and non-cracking

    UL Certified Glass Fiber Dog Bone / Pultruded Dog Bone With Fire Retardant


    Diagram:

     UL Certified Glass Fiber Dog Bone / Pultruded Dog Bone With Fire Retardant

    Specification sheet:

    Product Name Item No. Size
    Dogbone HC-XC-D-W 6*8
    HC-XC-D-W 8*8
    HC-XC-D-W 8*10
    HC-XC-D-W 8*12
    HC-XC-D-W 10*10
    HC-XC-D-W 10*12
    HC-XC-D-W 10*13
    HC-XC-D-W 10*16
    HC-XC-D-W 10*19
    HC-XC-D-W 10*20
    HC-XC-D-W 13*16
    HC-XC-D-W 16*24

    Dog bone wtith Fire retardant  used in power rigid

    UL Certified Glass Fiber Dog Bone / Pultruded Dog Bone With Fire Retardant

    power rigid also known as is used extensilvely in power rigid,Transmission and distribution includes two concepts, they are transmission and distribution .Transmission refers to the transmission of large amounts of electricity from power plants or power generation centers to the consumption area of electricity, or the transmission of power for each other between different power channels;
    Power distribution is the distribution method which distribution to users in the consumption power area ,it was serviced for user service directly.
    In the transmission and distribution which including the reactor, transformer, switch cabinet, circuit breaker, UPS uninterruptible power supply, laminated bus, etc.;Our upgm203 sheet are widely used in this field,we have accumulated rich experiences of material application and R&D.
