UL Certified Gpo-3 Insulation Profile Corner Bone Heat Resistant Fire Retardant

UL Certified Gpo-3 Insulation Profile Corner Bone Heat Resistant Fire Retardant

  • High Light

    gpo 3 corner bone

    ,

    pultruded corner bone

  • Product Name
    GPO-3 Corner Bone
  • Product Color
    White
  • Product Size
    21 Kinds Of Specifications
  • Density
    1.85-2.0g/cm3
  • Water Absorption
    ≤0.5%
  • Tensile Strength
    ≥400Mpa
  • Flexural Strength
    ≥650Mpa
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL(E344098)/RoHS 2.0 /Reach
  • Price
    EXW , FCA , FOB
  • Packaging Details
    crate packing,plywood pallet , plastic pallet ,carton
  • Delivery Time
    5-7 working days
  • Payment Terms
    T/T

UL Certified Gpo-3 Insulation Profile Corner Bone Heat Resistant Fire Retardant

Corner Bone wtith Fire retardant / UL certified insulation corner bone


Introduction:

RoHS Certified Corner Bone is pultruded by composed of e-class glass-fiber or glass-mat reinforced unsaturated polyester and inorganic filler binder.



Product Feature:

Technical advantages, mold development and design capabilities, excellent supporting capacity.

Non-cracking,space stability

Arc resistance:≥180S which is longer than most of other material

Track Resistance: CTI ≥600V

Heat resistant:H class,heat resisitance up to 180℃

Fire retardant:UL 94 V-0 Grade

Thermal Impact:Temp. Index: -273℃ to +155℃



Application:

GPO-3 Corner bone has space stability and high degree of automation processing,it is used extensively in equipments of power controller& power transmits as cable bridge & angle insulation; insulating channel of bus duct &fuse;insulating support of inverter converter etc. GPO-3 bracing series is our company special for the transformer ,reactor,large dry transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil of wire wound around the stability of bracing structure and non-cracking

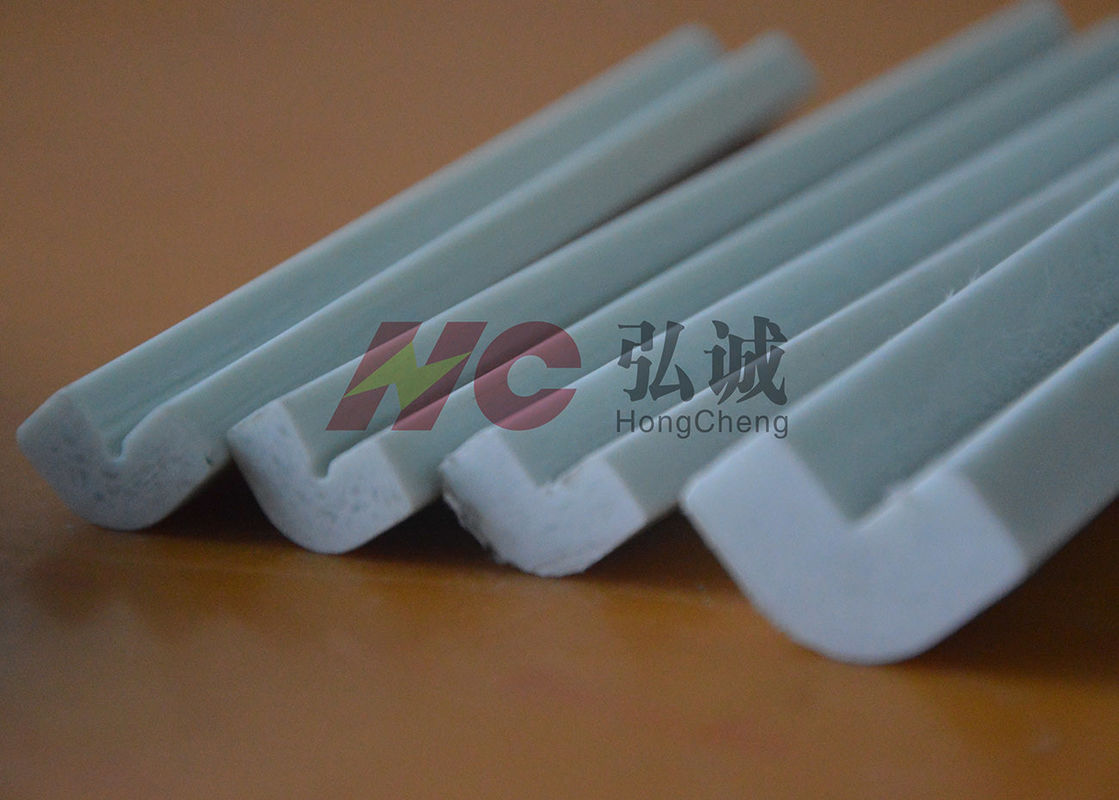

UL Certified Gpo-3 Insulation Profile Corner Bone Heat Resistant Fire Retardant 0


Diagram:

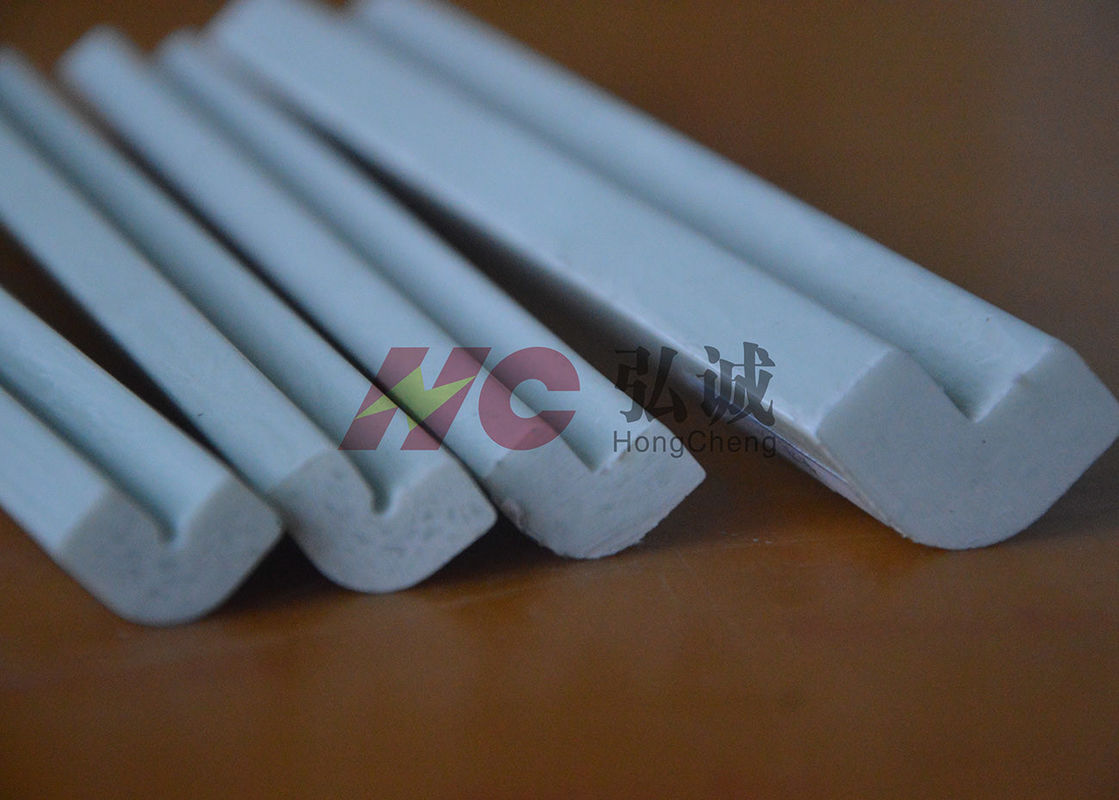

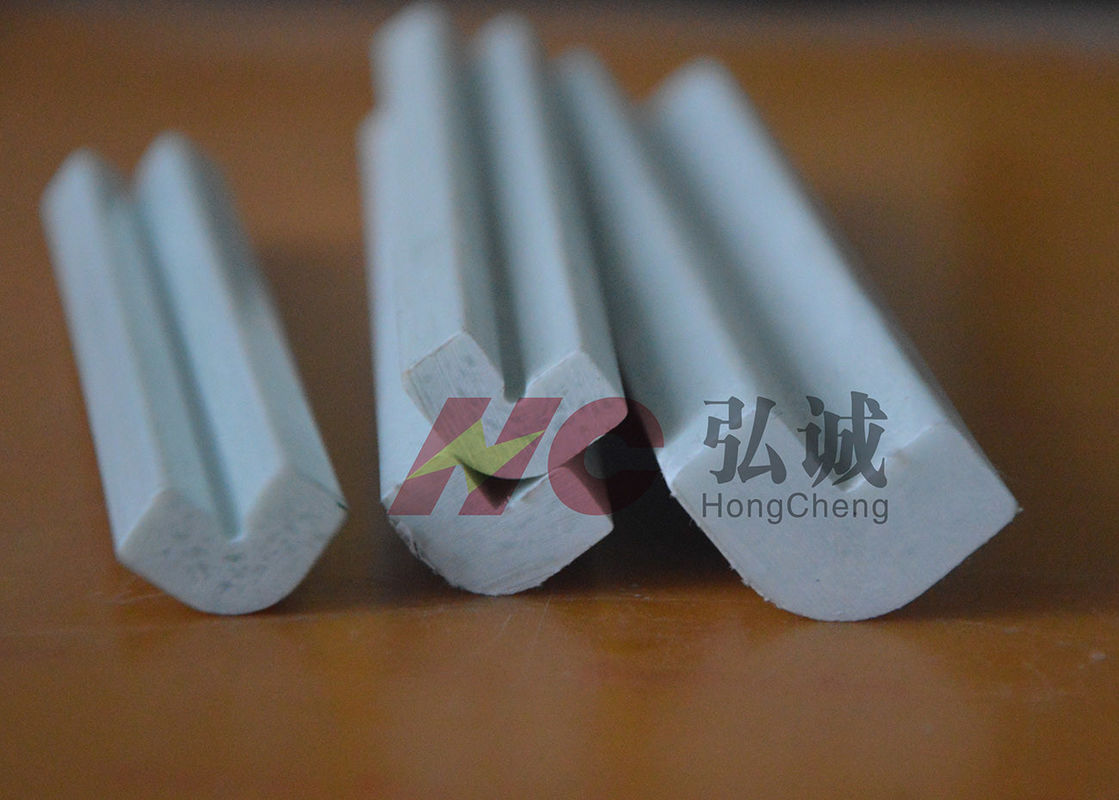

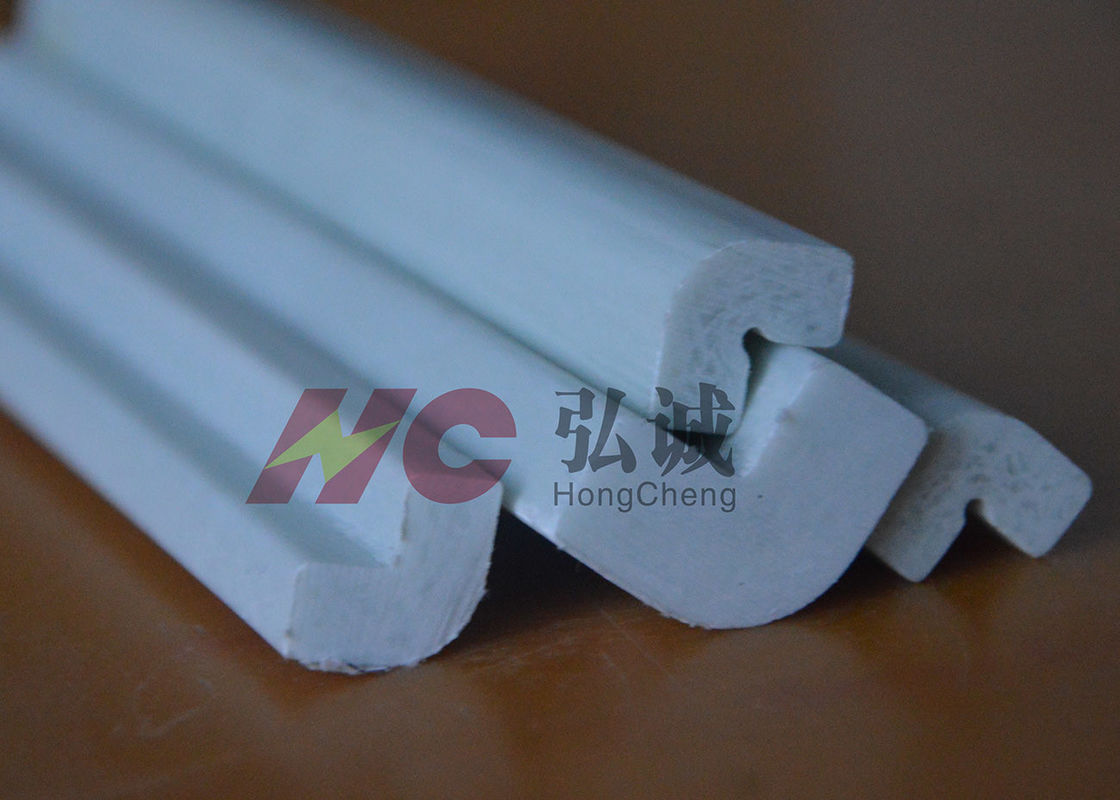

 UL Certified Gpo-3 Insulation Profile Corner Bone Heat Resistant Fire Retardant 1UL Certified Gpo-3 Insulation Profile Corner Bone Heat Resistant Fire Retardant 2UL Certified Gpo-3 Insulation Profile Corner Bone Heat Resistant Fire Retardant 3

Specification sheet:

Product Name Item No. Size
Corner bone HC-XC-C-W 6*6 normal
HC-XC-C-W 8*8 normal
HC-XC-C-W 10*10 normal
HC-XC-C-W 12*12 normal
Corner bone HC-XC-SC-W 7*7 Special-shaped
HC-XC-SC-W 8*8 Special-shaped
HC-XC-SC-W 10*10 Special-shaped
HC-XC-SC-W 12*12 Special-shaped
HC-XC-SC-W 16*16 Special-shaped

Corner Bone wtith Fire retardant used in Wind Driven Generator

UL Certified Gpo-3 Insulation Profile Corner Bone Heat Resistant Fire Retardant 4

Wind power generation is an important generator in the new energy.When the fan blade is driven by wind, the motor will turn to generate electricity.Insulation material in the wind power motor application, the requirement of temperature resistance is F above & flame retardant V0 ,it has important weather resistance requirements , The commonly materials used in wind driven generator are HC-GPO3/HC-FR4 etc.
