Custom Fiberglass Corner Bone Multi Specifications With High Arc Resistance

Custom Fiberglass Corner Bone Multi Specifications With High Arc Resistance

  • High Light

    gpo 3 corner bone

    ,

    pultruded corner bone

  • Product Name
    GPO-3 Corner Bone
  • Product Color
    White
  • Product Size
    21 Kinds Of Specifications
  • Volume Resistivity
    ≥1.0 X 1012Ω·m
  • Density
    1.85-2.0g/cm3
  • Surface Resistivity
    ≥ 1.0×1014Ω
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL(E344098)/RoHS 2.0 /Reach
  • Price
    EXW , FCA , FOB
  • Packaging Details
    crate packing,plywood pallet , plastic pallet ,carton
  • Delivery Time
    5-7 working days
  • Payment Terms
    T/T

Custom Fiberglass Corner Bone Multi Specifications With High Arc Resistance

Multi specifications Corner bone / Custom Insulation Corner bone


Introduction: RoHS Certified Corner Bone is pultruded by composed of e-class glass-fiber or glass-mat reinforced unsaturated polyester and inorganic filler binder.

Advantages:





Technical advantages, mold development and design capabilities, excellent supporting capacity.

Non-cracking,space stability

Arc resistance:≥180S which is longer than most of other material

Track Resistance: CTI ≥600V

Heat resistant:H class,heat resisitance up to 180℃

Fire retardant:UL 94 V-0 Grade

Thermal Impact:Temp. Index: -273℃ to +155℃

Applicaton: transformer ,reactor,large dry transformer

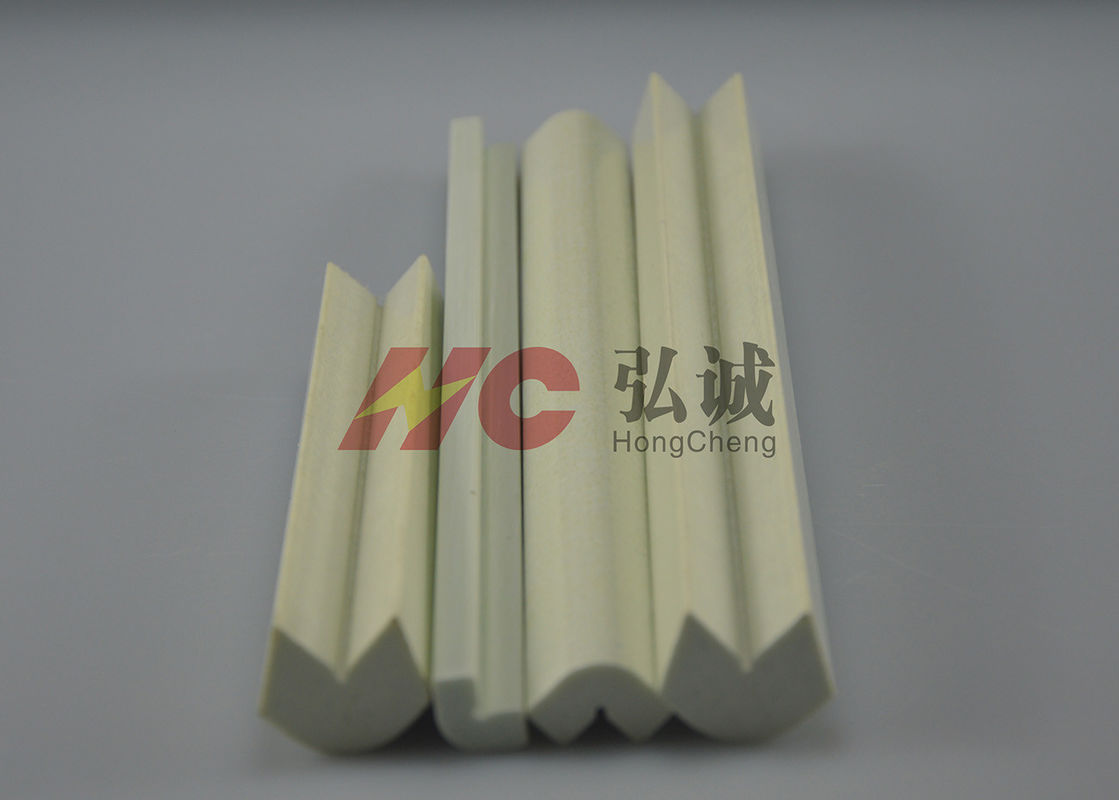

Custom Fiberglass Corner Bone Multi Specifications With High Arc Resistance 0


Diagram:

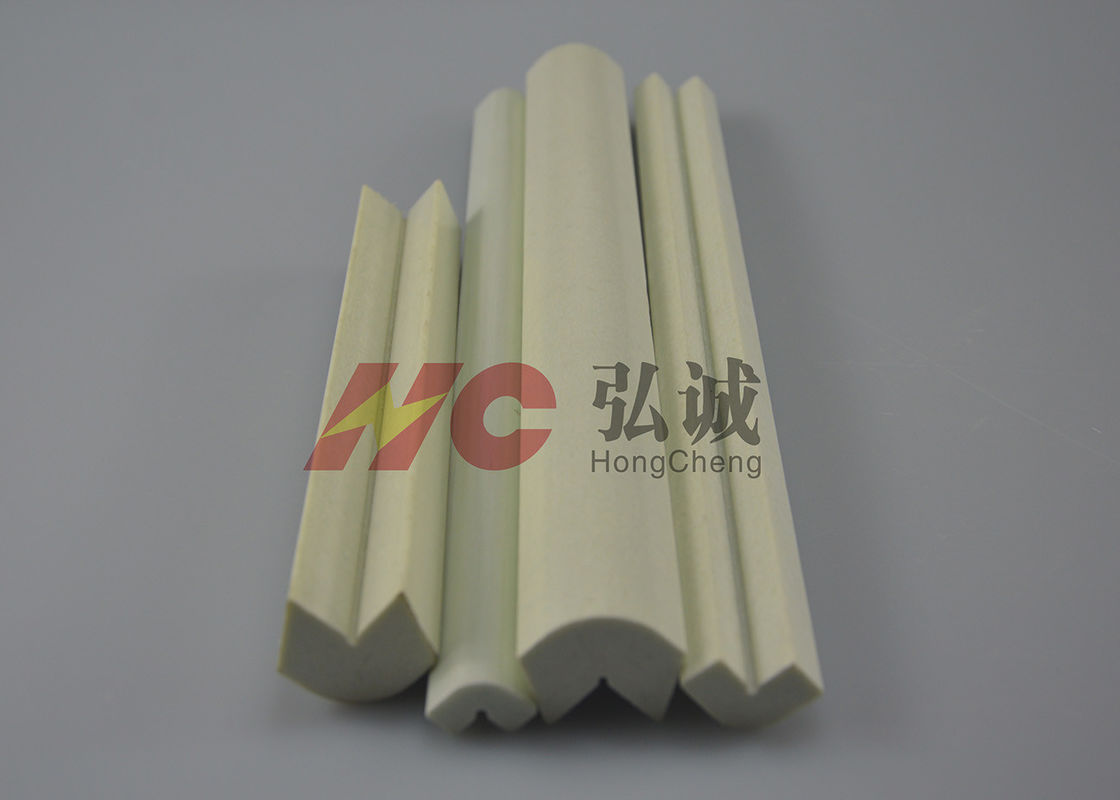

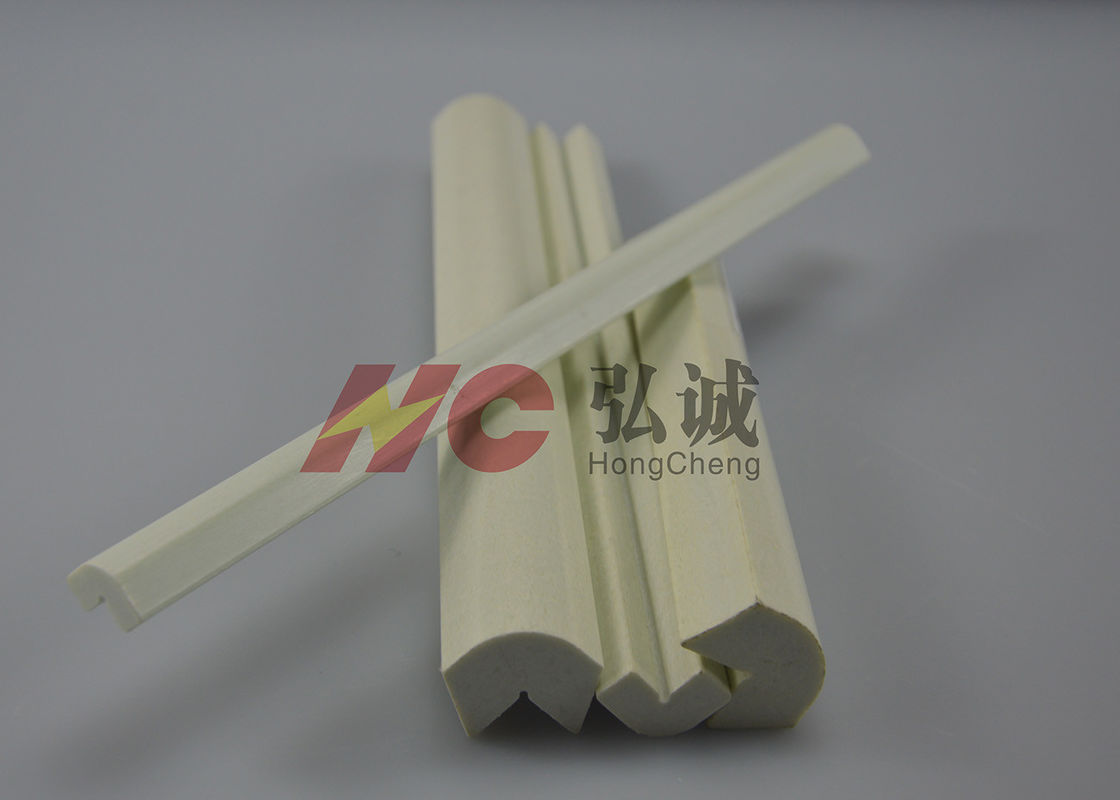

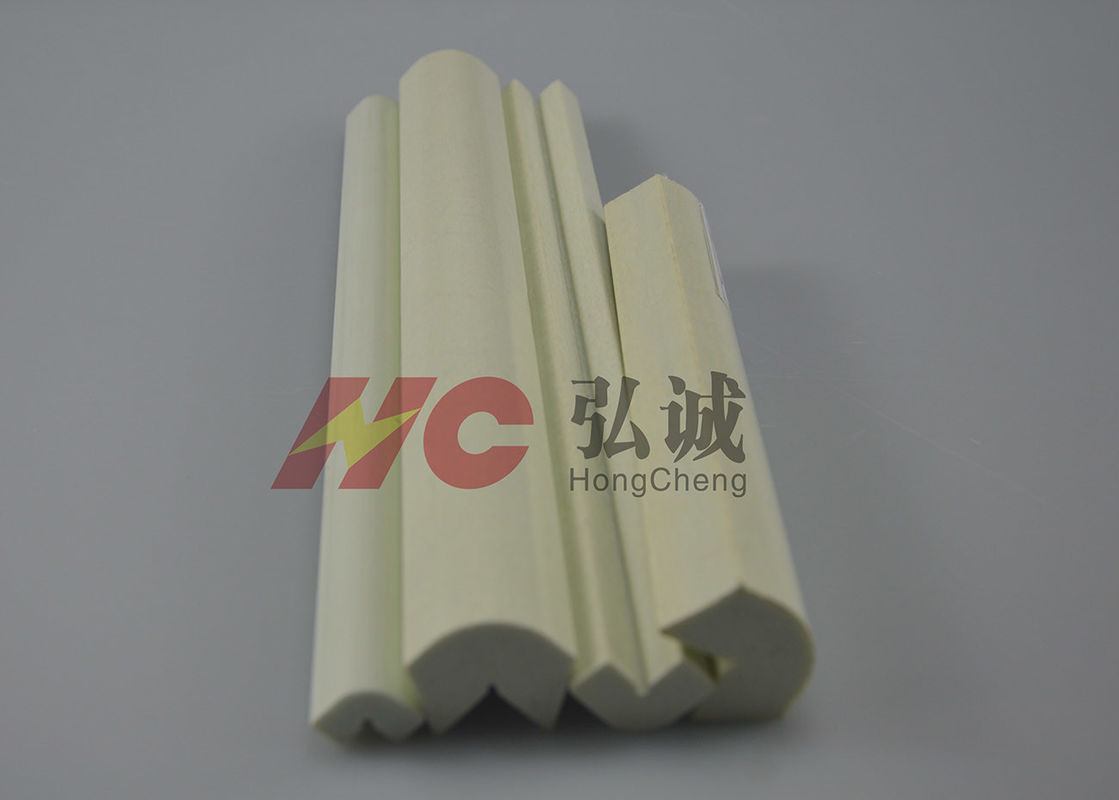

 Custom Fiberglass Corner Bone Multi Specifications With High Arc Resistance 1Custom Fiberglass Corner Bone Multi Specifications With High Arc Resistance 2Custom Fiberglass Corner Bone Multi Specifications With High Arc Resistance 3

Specification sheet:

Product Name Item No. Size
Corner bone HC-XC-C-W 6*6 normal
HC-XC-C-W 8*8 normal
HC-XC-C-W 10*10 normal
HC-XC-C-W 12*12 normal
Corner bone HC-XC-SC-W 7*7 Special-shaped
HC-XC-SC-W 8*8 Special-shaped
HC-XC-SC-W 10*10 Special-shaped
HC-XC-SC-W 12*12 Special-shaped
HC-XC-SC-W 16*16 Special-shaped

Multi specifications Corner bone used in UPS

Custom Fiberglass Corner Bone Multi Specifications With High Arc Resistance 4

UPS is the uninterrupted power supply which is connected to the host by the battery ,converts the direct current into the system equipment of the AC by module circuit of the main engine inverter. When the market input is normal,UPS supplies the AC to the load after voltage stabilization .At this time, UPS is an AC voltage regulator, and it also charges the battery inside the machine;
When mains supply interruption (power outage), UPS use the battery's direct current energy to continue supply 220V alternating current to the load immediately through the inverter switching conversion method ,it makes the load keep working and protect the software and hardware from being damaged. UPS devices usually provide protection against voltage too high or too low .The flame retardant requirement for insulating materials is V0, high strength and temperature resistance , The commonly materials used in UPS is HC-GPO3
UPS are divided into:prepared UPS ,Online UPS,On line interactive UPS,The working principle of UPS is use the AC to charge the battery.than use the battery to supply the power for inverter cabinet,in order to supply power automaticly when the AC fails.
GPO-3 sheet,PC are mainly used as Protective cover sheet , the structures plate,battery box which will improve the safety and durability of UPS.
Main famous cooperative enterprises:Kehua Group(China) Co.,Ltd,East Group Co.,Ltd,Emerson electric(China) Co.,Ltd,Schneider(APC)
