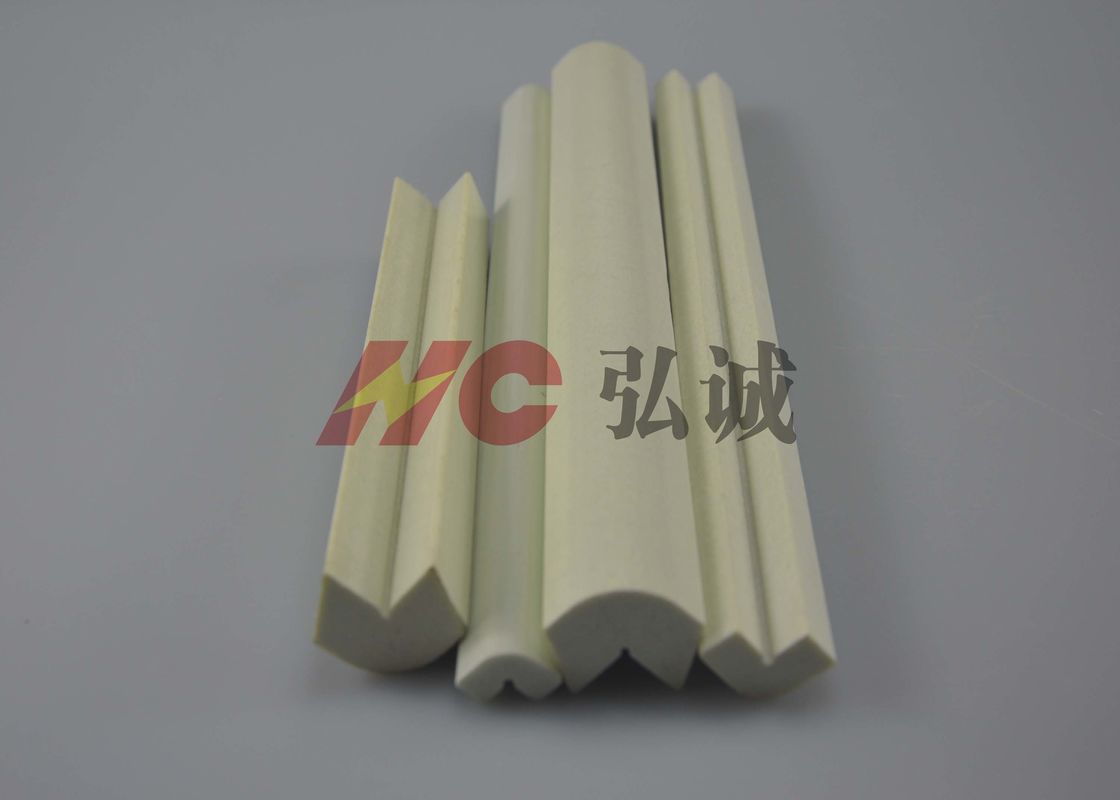

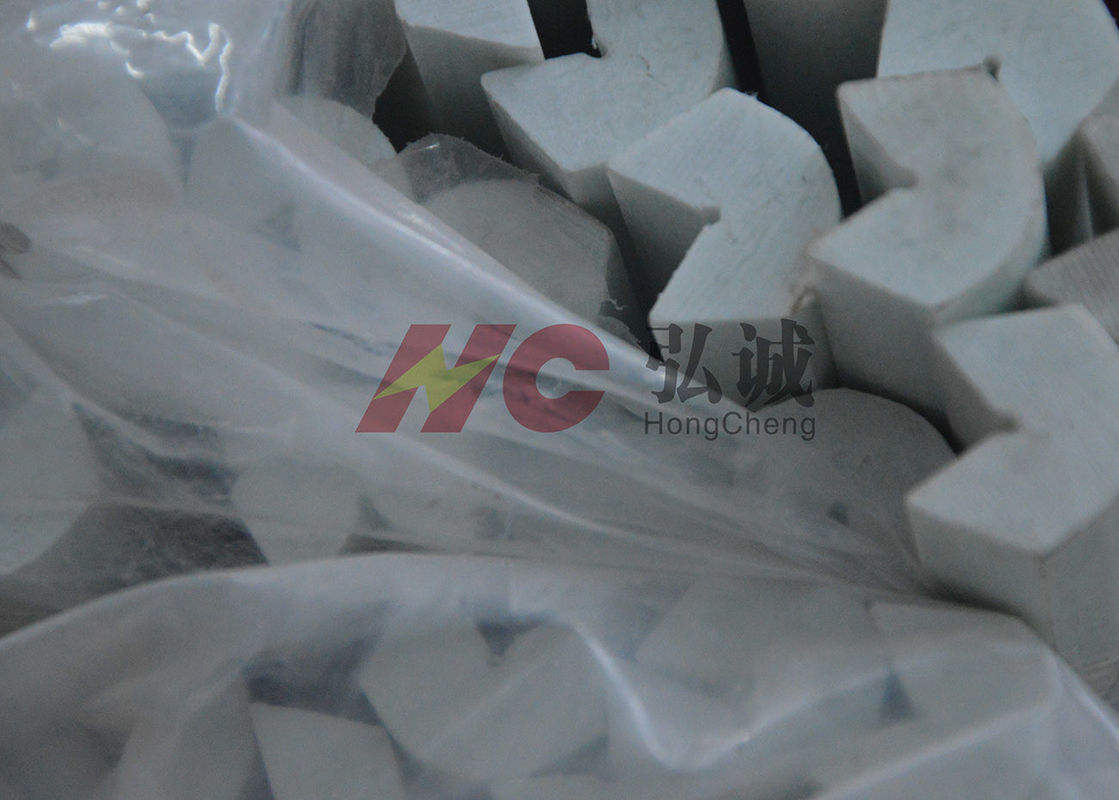

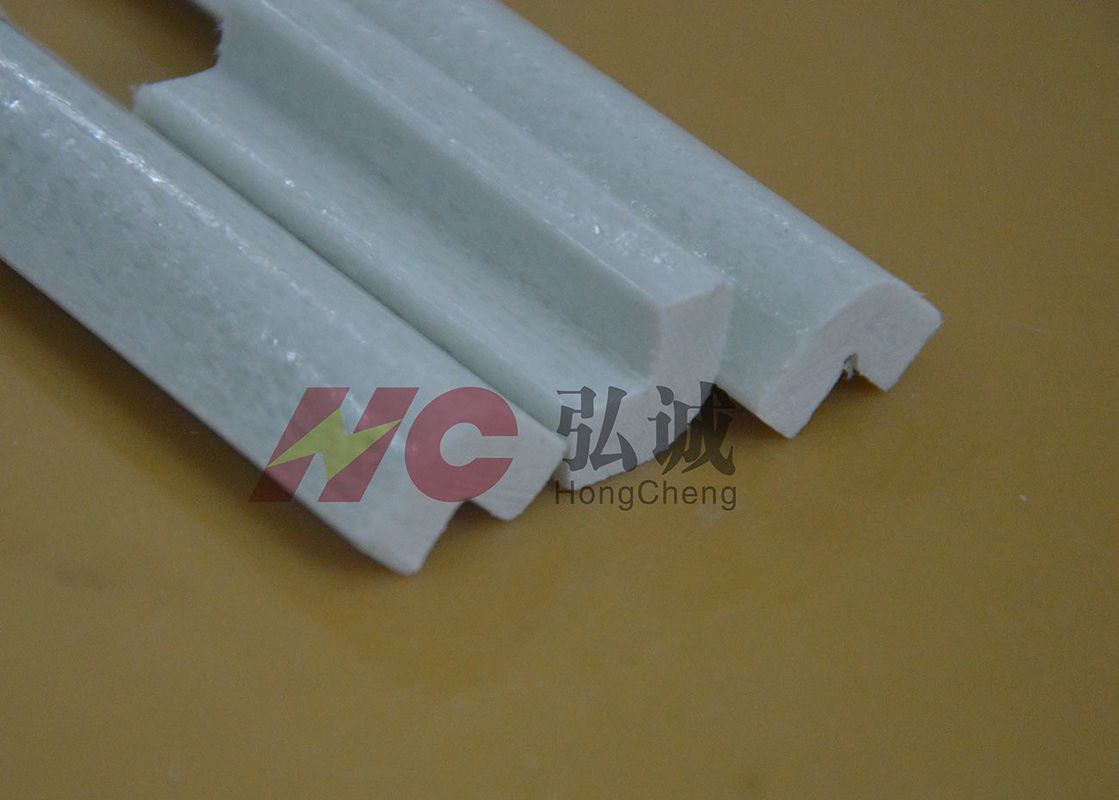

Reactor White Insulation Corner Bone / GPO-3 Corner Bone Non - Cracking

    • Reactor White Insulation Corner Bone / GPO-3 Corner Bone Non - Cracking
    • Reactor White Insulation Corner Bone / GPO-3 Corner Bone Non - Cracking
    • Reactor White Insulation Corner Bone / GPO-3 Corner Bone Non - Cracking
  • Reactor White Insulation Corner Bone / GPO-3 Corner Bone Non - Cracking

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 Corner Bone Product Color: White
    Product Size: 21 Kinds Of Specifications Water Absorption: <0.5%
    Tensile Strength: >400Mpa Coefficient Of Thermal Expansion: ≤2×10-5
    Surface Resistivity: ≥ 1.0×1014Ω

    Reactor special-purpose Corner bone / Insulation Corner bone special for Reactor with stable structure


    Introduction:

    RoHS Certified Corner Bone is pultruded by composed of e-class glass-fiber or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Product Feature:

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    Non-cracking,space stability

    Arc resistance:≥180S which is longer than most of other material

    Track Resistance: CTI ≥600V

    Heat resistant:H class,heat resisitance up to 180℃

    Fire retardant:UL 94 V-0 Grade

    Thermal Impact:Temp. Index: -273℃ to +155℃



    Application:

    GPO-3 Corner bone has space stability and high degree of automation processing,it is used extensively in equipments of power controller& power transmits as cable bridge & angle insulation; insulating channel of bus duct &fuse;insulating support of inverter converter etc. GPO-3 bracing series is our company special for the transformer ,reactor,large dry transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil of wire wound around the stability of bracing structure and non-cracking

    Reactor White Insulation Corner Bone / GPO-3 Corner Bone Non - Cracking


    Diagram:

     Reactor White Insulation Corner Bone / GPO-3 Corner Bone Non - CrackingReactor White Insulation Corner Bone / GPO-3 Corner Bone Non - CrackingReactor White Insulation Corner Bone / GPO-3 Corner Bone Non - Cracking


    Specification sheet:

    Product Name Item No. Size
    Corner bone HC-XC-C-W 6*6 normal
    HC-XC-C-W 8*8 normal
    HC-XC-C-W 10*10 normal
    HC-XC-C-W 12*12 normal
    Corner bone HC-XC-SC-W 7*7 Special-shaped
    HC-XC-SC-W 8*8 Special-shaped
    HC-XC-SC-W 10*10 Special-shaped
    HC-XC-SC-W 12*12 Special-shaped
    HC-XC-SC-W 16*16 Special-shaped

    Reactor special-purpose Corner bone

    Reactor White Insulation Corner Bone / GPO-3 Corner Bone Non - Cracking

    Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are UPGM203 laminated sheet
    Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
    Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.
