Transformer Insulation Corner Bone With Excellent Supporting Capacity

Transformer Insulation Corner Bone With Excellent Supporting Capacity

  • High Light

    gpo 3 corner bone

    ,

    fiberglass corner bone

  • Product Name
    GPO-3 Corner Bone
  • Product Color
    White
  • Product Size
    21 Kinds Of Specifications
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL(E344098)/RoHS 2.0 /Reach
  • Price
    EXW , FCA , FOB
  • Packaging Details
    crate packing,plywood pallet , plastic pallet ,carton
  • Delivery Time
    5-7 working days
  • Payment Terms
    T/T

Transformer Insulation Corner Bone With Excellent Supporting Capacity

transformer special-purpose Corner bone / Insulation Cormer bone special for airway support in transformer


Product Description:



RoHS Certified Corner Bone is pultruded by composed of e-class glass-fiber or glass-mat reinforced unsaturated polyester and inorganic filler binder.



RoHS Certified Corner Bone is our cmpany special for the transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil or wire wound around the stability of bracing structure and non-cracking.

Product Advantages:



Technical advantages, mold development and design capabilities, excellent supporting capacity.

Excellent size, space stability, non cracking, non Explosive Edge

Excellent Arc Resistance(Arc Resistance≥180 S)

Excellent Track Resistance(CTI≥600V)

Excellent Heat Resistance(Class F)

Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)

Excellent Fire Retardant(UL 94 V-0 Grade)



Application:

transformer ,reactor,large dry transformer

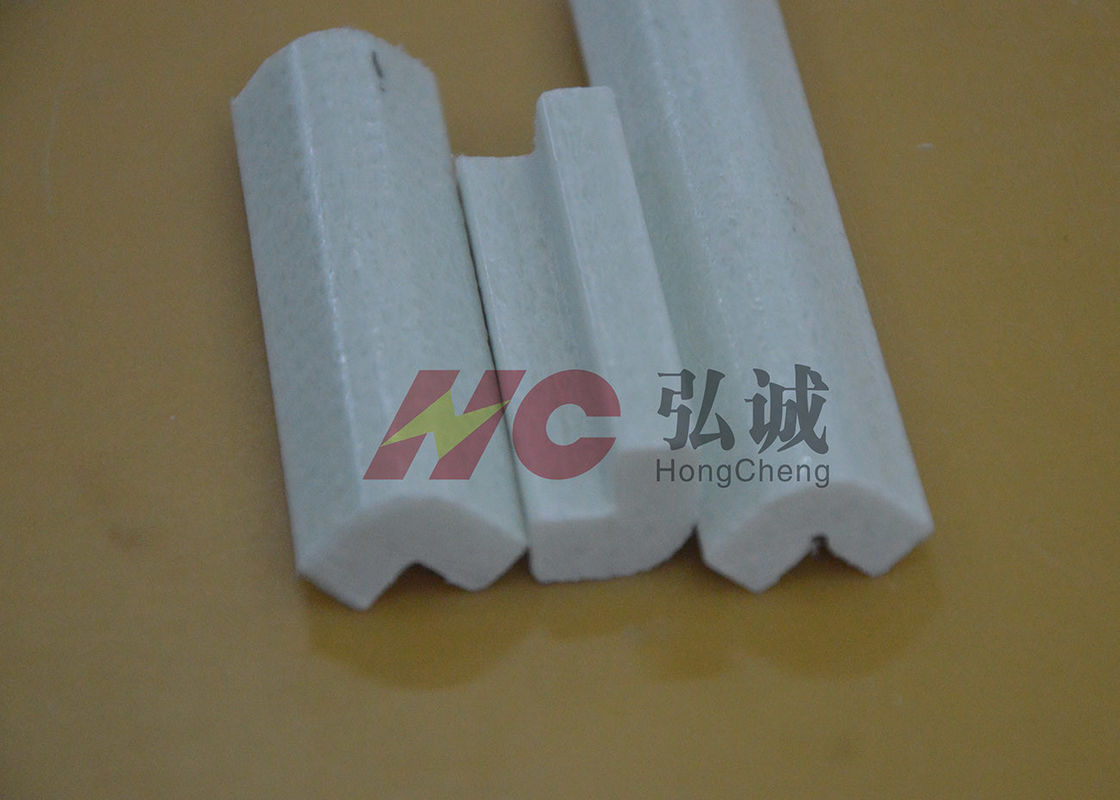

Transformer Insulation Corner Bone With Excellent Supporting Capacity 0


Diagram:

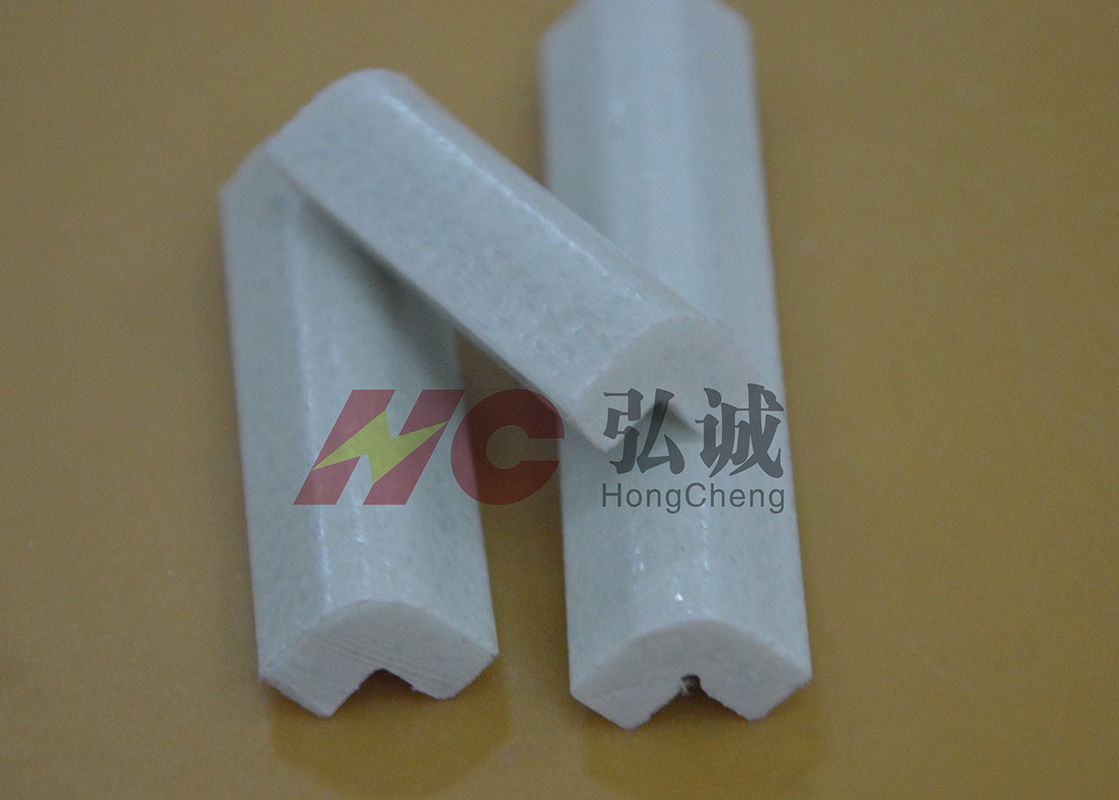

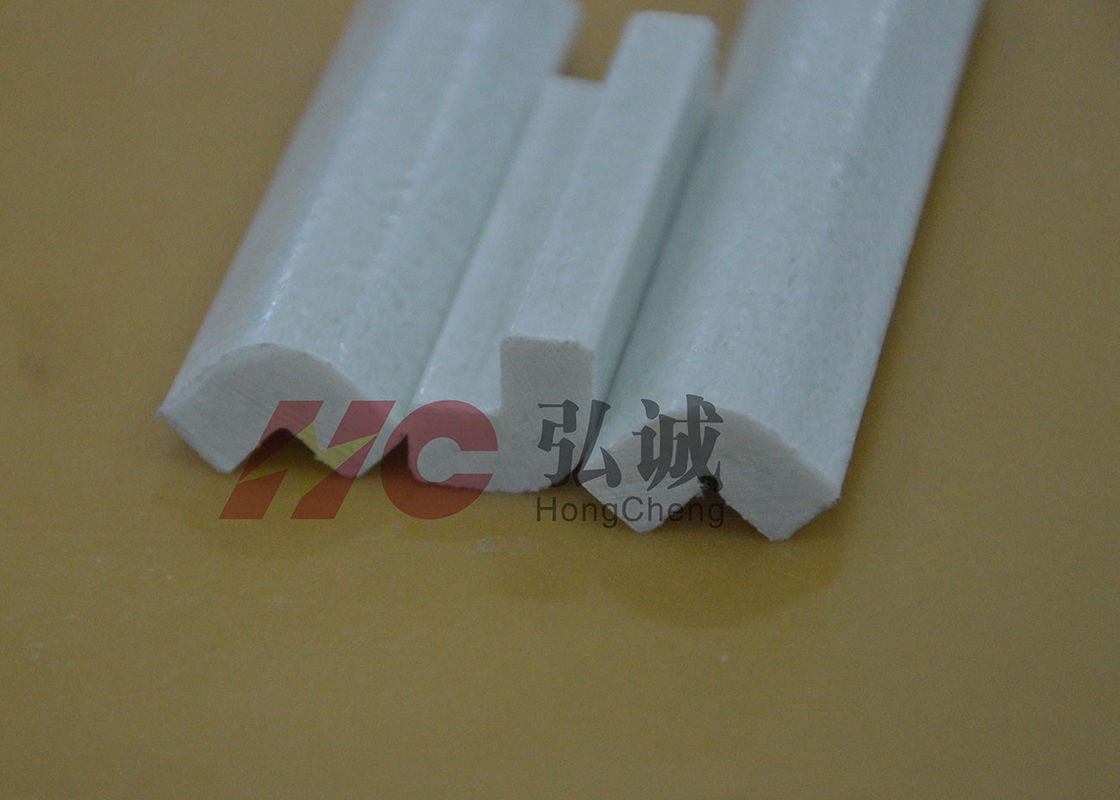

 Transformer Insulation Corner Bone With Excellent Supporting Capacity 1Transformer Insulation Corner Bone With Excellent Supporting Capacity 2Transformer Insulation Corner Bone With Excellent Supporting Capacity 3

Specification sheet:

Product Name Item No. Size
Corner bone HC-XC-C-W 6*6 normal
HC-XC-C-W 8*8 normal
HC-XC-C-W 10*10 normal
HC-XC-C-W 12*12 normal
Corner bone HC-XC-SC-W 7*7 Special-shaped
HC-XC-SC-W 8*8 Special-shaped
HC-XC-SC-W 10*10 Special-shaped
HC-XC-SC-W 12*12 Special-shaped
HC-XC-SC-W 16*16 Special-shaped

Transformer special-purpose Corner bone  used in Transformer

Transformer Insulation Corner Bone With Excellent Supporting Capacity 4

The electric reactor is also called the inductor ,after the electric reactor is energized, the magnetic field can be generated in a certain space range which plays a protective role in the power transmission and distribution.The transformer utilize the electromagnetic induction to change the voltage of the alternating current, and it acts as an energy conversion process.
Main famous cooperative enterprises: Siemens,TBEA Co.,Ltd.
