REACH Certified Insulation Corner Bone With Excellent Heat Resistance

REACH Certified Insulation Corner Bone With Excellent Heat Resistance

  • High Light

    gpo 3 corner bone

    ,

    pultruded corner bone

  • Product Name
    GPO-3 Corner Bone
  • Product Color
    White
  • Product Size
    21 Kinds Of Specifications
  • Water Absorption
    <0.5%
  • Tensile Strength
    >400Mpa
  • Flexural Strength(perpendicular)
    ≥650Mpa
  • Volume Resistivity
    ≥1.0 X 1012Ω·m
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL(E344098)/RoHS 2.0 /Reach
  • Price
    EXW , FCA , FOB
  • Packaging Details
    crate packing,plywood pallet , plastic pallet ,carton
  • Delivery Time
    5-7 working days
  • Payment Terms
    T/T

REACH Certified Insulation Corner Bone With Excellent Heat Resistance

Environment-friendly insulation Corner Bone with Reach certified / REACH Certified corner bone


Product Description



Environment-friendly insulation Corner Bone with Reach certified is pultruded by composed of e-class glass-fiber or glass-mat reinforced unsaturated polyester and inorganic filler binder.



Environment-friendly insulation Corner Bone with Reach certified  is our cmpany special for the transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil or wire wound around the stability of bracing structure and non-cracking.



Features:



 Technical advantages, mold development and design capabilities, excellent supporting capacity.

 Excellent size, space stability, non cracking, non Explosive Edge

 Excellent Arc Resistance(Arc Resistance≥180 S)

 Excellent Track Resistance(CTI≥600V)

 Excellent Heat Resistance(Class F)

 Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)

 Excellent Fire Retardant(UL 94 V-0 Grade)





Application:

GPO-3 Corner bone has space stability and high degree of automation processing,it is used extensively in equipments of power controller& power transmits as cable bridge & angle insulation; insulating channel of bus duct &fuse;insulating support of inverter converter etc. GPO-3 bracing series is our company special for the transformer ,reactor,large dry transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil of wire wound around the stability of bracing structure and non-cracking

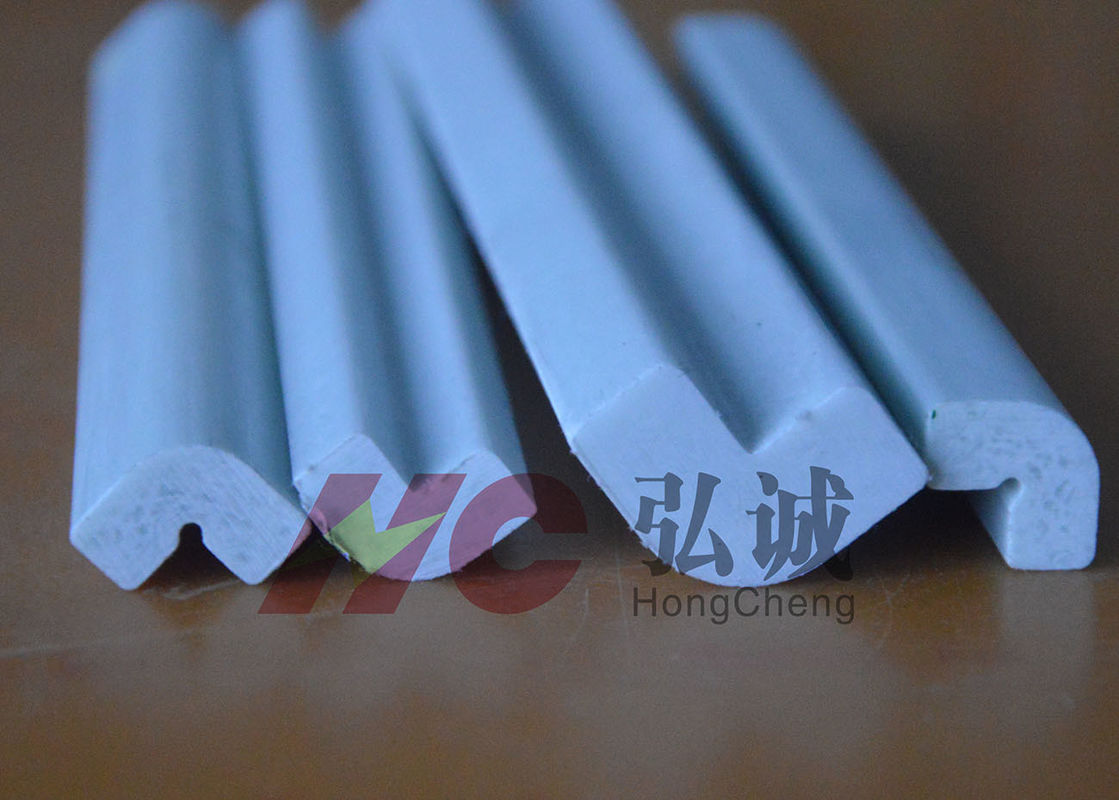

REACH Certified Insulation Corner Bone With Excellent Heat Resistance 0


Diagram:

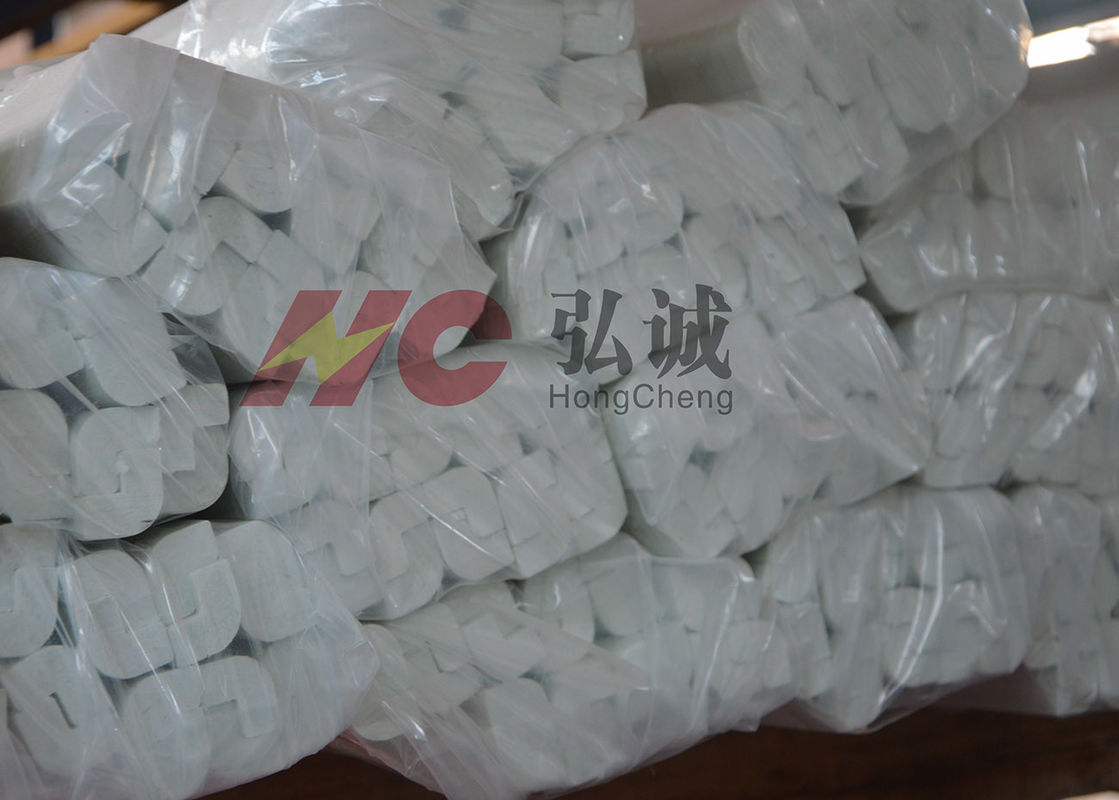

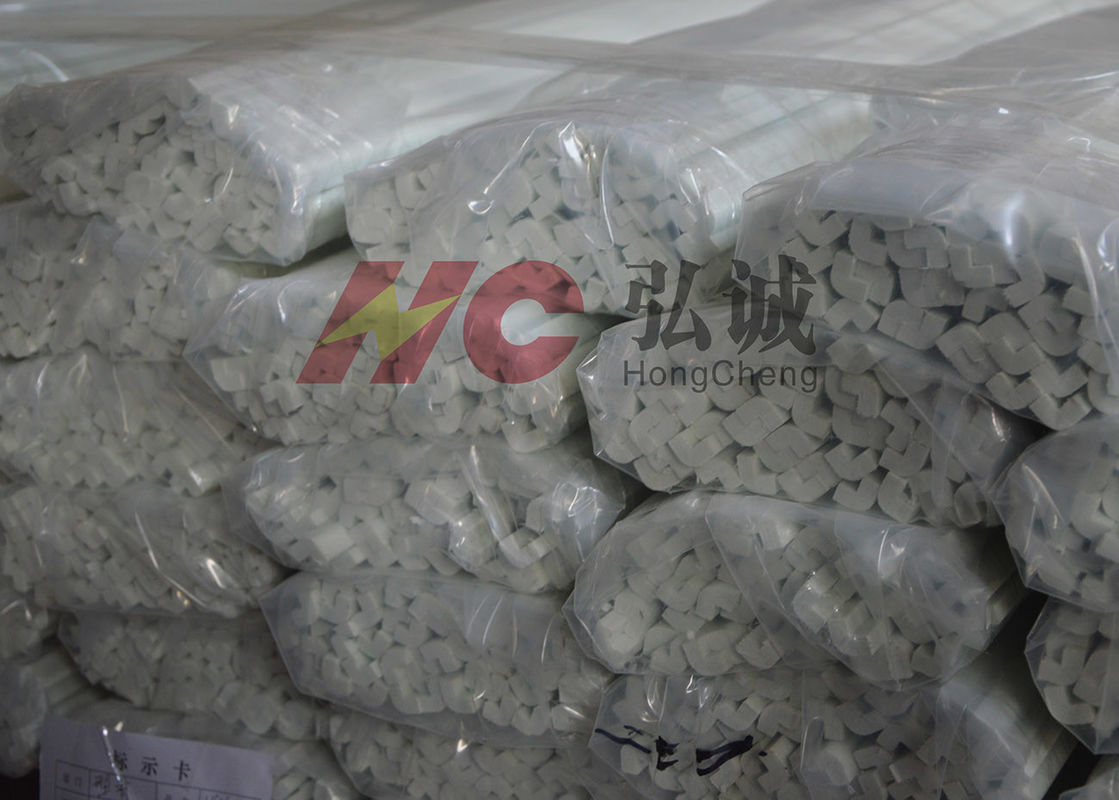

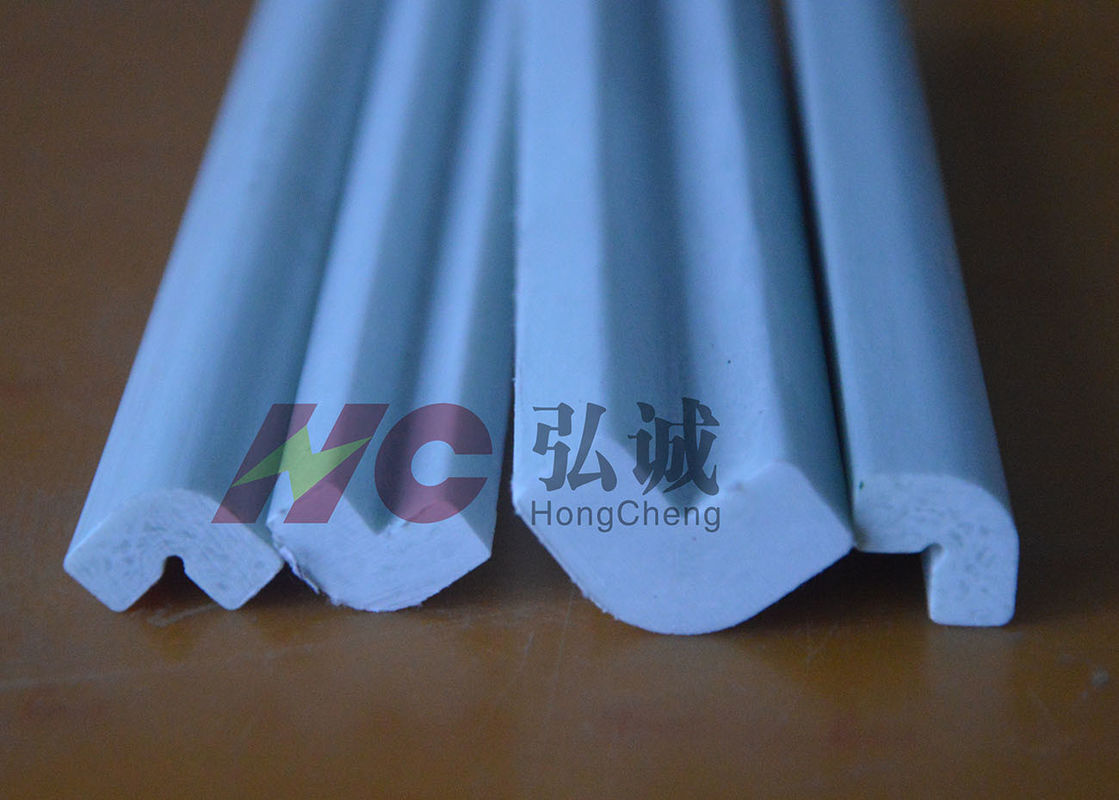

 REACH Certified Insulation Corner Bone With Excellent Heat Resistance 1REACH Certified Insulation Corner Bone With Excellent Heat Resistance 2REACH Certified Insulation Corner Bone With Excellent Heat Resistance 3

Specification sheet:

Product Name Item No. Size
Corner bone HC-XC-C-W 6*6 normal
HC-XC-C-W 8*8 normal
HC-XC-C-W 10*10 normal
HC-XC-C-W 12*12 normal
Corner bone HC-XC-SC-W 7*7 Special-shaped
HC-XC-SC-W 8*8 Special-shaped
HC-XC-SC-W 10*10 Special-shaped
HC-XC-SC-W 12*12 Special-shaped
HC-XC-SC-W 16*16 Special-shaped

Environment-friendly insulation Corner Bone with Reach certified  used in Super-Capacitor

REACH Certified Insulation Corner Bone With Excellent Heat Resistance 4

Super capacitor is a promising field in the energy storage system. Its energy storage principle is the physical reaction, which is similar to the use of lithium batteries, and applies to new energy vehicles, new energy buses and so on.
Most of insulating material used in supercapacitor's fixed installation, according to the using conditions require fire report, flame retardant grade meet V-0, heat resistance at least meet F grade, firm installation ,with basic of electrical properties. The commonly materials used are HC-GPO3/HC-FR4 etc.
